1/8" x 5/16" Brass 90 Degree Elbow MPN:402X5

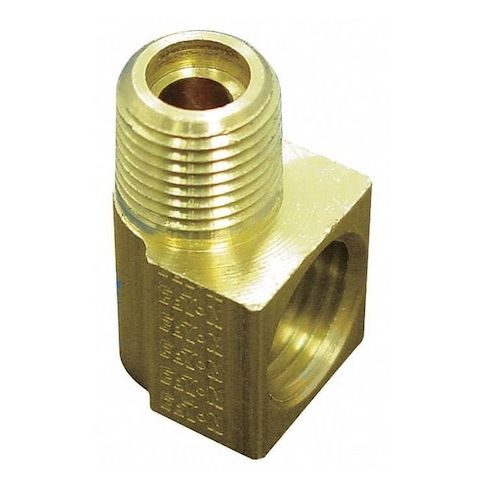

1/8" x 5/16" Brass 90 Degree Elbow
This 90-degree elbow fitting is a crucial component for hydraulic systems, providing a smooth transition between 5/16in tubing and 1/8in MNPT connections. Made from durable brass, it can withstand high pressures up to 2,000 psi and temperatures up to 250°F. The fitting's flared design ensures a secure connection, while its compact size and hexagonal shape make it easy to handle and install. Suitable for a range of applications, including industrial and automotive hydraulics, this elbow fitting is a reliable choice for any system requiring precise fluid flow and pressure management.
Top product features:
- Flared Fitting Elbow provides a secure connection for hydraulic systems
- Inverted Flare connection type allows for reliable tube connection on one side
- MNPT connection type on the other side accommodates standard pipe fittings
Top product applications:
- Hydraulics
- Hydraulic systems require precise fittings like the 90 degree elbow to connect and direct fluid flow.
- Hydraulic systems often use brass fittings due to their resistance to corrosion and high-pressure capabilities.
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Hydraulics, Fitting Side A Connection Type Inverted Flare, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 5/16 in, Fitting Thread Size 1/2 In.-20, Hex Size 19/32 in, Maximum Operating Pressure 2,000 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 1 in, Specific Fitting Shape 90 Degrees Elbow, Standards ASA, ASME, MS, SAE, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.60
- Package Height: 0.70
- Package Weight: 0.05
Product info last updated on February 2, 2026 8:27pm UTC
Category: Pipes, Valves and Fittings
