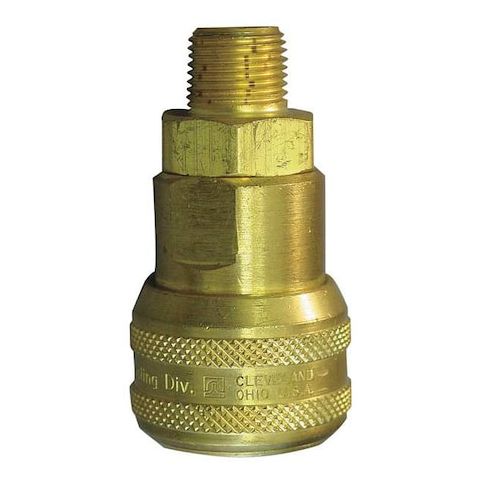

Coupler Body, (M)NPT, 1/2, Brass MPN:5300E

• The WEATHERHEAD - 5300E is a hose coupling with a push-to-connect locking mechanism for tool-free connection and disconnection. It features a push-to-connect locking mechanism with a poppet valve, intended to form a sealed connection when installed and used within the specified pressure and temperature ratings. Rated for use with air and fluid lines within the specified pressure (500 psi at 70°F) and temperature (-40°F to 250°F) ranges, this coupling is configured for use with specified interchange standards (1/2" NPT male thread

• 1/2" hose fitting size).

  Key Features:


  • - Material: Brass body with brass finish for visible surfaces.
  • - Connection type: 1/2" NPT male thread with 1/2" hose fitting size.
  • - Coupling component: Socket type with push-to-connect locking.
  • - Valve: Includes an integrated poppet valve for flow control.
  • - Seal material: Nitrile.
  • - Operating temperature range: -40°F to 250°F.
  • - Overall length: 3 inches
  • maximum outside diameter: 1 1/2 inches.
  • - Color: Gold.
