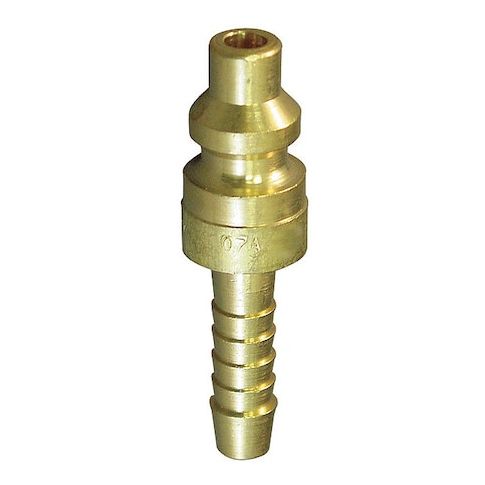

Coupler Plug, Hose Barb, 3/8, Steel MPN:408

The WEATHERHEAD - 408 is a quick connect hose coupling is intended for manual connection and disconnection of hoses and equipment using a sleeve locking mechanism. It features a male plug coupling compatible with industrial interchange standards and uses a sleeve locking mechanism. is made from steel and has a zinc-plated finish, it connects to a hose via a 1/2 in barb and mates with a 3/8 in body size quick-connect coupling. is compatible with pneumatic air tool applications when used with equipment and hose fittings rated within the specified ranges.

Key Features:

• - Material: Steel with zinc-plated finish for surface treatment
• - Connection type: Hose barb, male fitting with 1/2 in barb size and hose fitting size
• - Coupling size: 3/8 in plug with sleeve locking type
• - Compatible with Industrial Interchange standard couplings (per matching listed sizes and connection type)
• - Seal material: Nitrile O-ring
• - Maximum flow rate: 1,274.25 liters per minute
• - Maximum rated working pressure: 1,000 psi at 70°F
• - Is rated for operation within a temperature range of -40°F to 250°F
• - Overall length: 2.38 in
• - Maximum outside diameter: 0.812 in (13/16 in)
• - Does not include an integrated valve
