C-Face Clutch, Torque 30 Ft-Lb, 90 DC MPN:UM100-1040

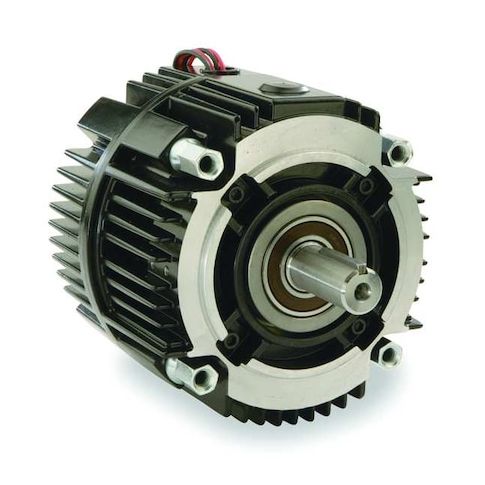

C-Face Clutch, Torque 30 Ft-Lb, 90 DC
The Warner Electric C-Face Clutch is a reliable and efficient solution for various applications that require precise torque control. This clutch is designed for use with NEMA C-Face motors or between motors and reducers, making it ideal for applications such as conveyor systems, packaging machinery, and material handling equipment. Its 30 ft-lb static torque and 3,600 RPM maximum speed make it suitable for a wide range of industries. With its CSA certification and UL listing, this clutch meets strict safety standards, providing a high level of reliability and peace of mind for users.
Top product features:
- Clutch/Brake Type C-Face
- Static Torque 30 ft-lb
- Maximum Speed 3,600 RPM
Top product applications:
- NEMA C-Face Motor
- Between Motor and Reducer
- NEMA C-Face Motor/Reducer
C-Face Clutch, Clutch/Brake Type C-Face, Coil Voltage 90V DC, Operating Voltage 90V DC, Enclosure Type Vented, Static Torque 30 ft-lb, Motor Frame Designation 56C NEMA, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Lead Length 30 in, Overall Length 6.75 in, Overall Width 6.75 in, Phase -, Service Factor -, Standards CSA Certified, UL Listed, Application -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.60
- Package Width: 8.90
- Package Height: 10.90
- Package Weight: 17.56
Product info last updated on February 20, 2026 12:09pm UTC
Category: Motors
