C-Face Clutch, Torque 95 Ft-Lb, 90 DC MPN:UM215-1040

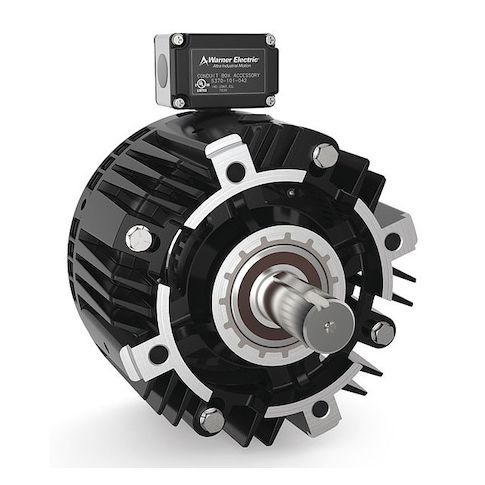

C-Face Clutch, Torque 95 Ft-Lb, 90 DC
The Warner Electric C-Face Clutch is a reliable and efficient solution for various applications, including NEMA C-Face motor/reducer systems. With a static torque of 95 ft-lb and operating voltage of 90V DC, this clutch provides precise control and smooth operation. Its compact design and mounting hardware make it easy to integrate into existing systems. Suitable for use in a range of industries, including material handling, packaging, and manufacturing, this clutch offers improved productivity and reduced downtime. Its CSA certification and UL listing ensure compliance with industry standards, making it a trusted choice for demanding applications.
Top product features:
- Clutch/Brake Type: The product is a clutch/brake that allows for both clutching and braking functions.
- Operating Voltage: The product can operate at 90V DC.
- Static Torque: The product provides a static torque of 95 ft-lb, allowing for a consistent and controlled amount of force.
Top product applications:
- NEMA C-Face Motor
- Between Motor and Reducer
- NEMA C-Face Motor/Reducer
C-Face Clutch, Clutch/Brake Type C-Face, Coil Voltage 90V DC, Operating Voltage 90V DC, Enclosure Type Vented, Static Torque 95 ft-lb, Motor Frame Designation 213TC NEMA, Shaft Diameter 1 3/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Lead Length 30 in, Overall Length 9.38 in, Overall Width 10 in, Phase -, Service Factor -, Standards CSA Certified, UL Listed, Application -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 16.30
- Package Height: 12.60
- Package Weight: 37.93
Product info last updated on March 22, 2026 11:18am UTC
Category: Motors
