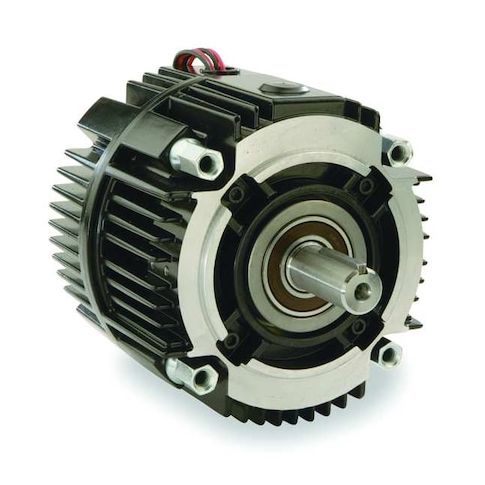

C-Face Clutch, Torque 16 Ft-Lb, 90 DC MPN:UM50-1040
C-Face Clutch, Torque 16 Ft-Lb, 90 DC
The Warner Electric C-Face Clutch is a reliable and efficient torque transmission solution for a variety of applications. Designed for use with NEMA C-Face motors and reducers, this clutch provides a static torque of 16 ft-lb and can operate at speeds of up to 3,600 RPM. Its compact design and vented enclosure make it ideal for use in a range of industries, including material handling, packaging, and manufacturing. With its high-quality construction and durable components, this clutch is built to withstand the demands of heavy use and provide consistent performance. Suitable for use in harsh environments and demanding applications.
Top product features:
- Clutch/Brake Type C-Face
- Includes Mounting Hardware
- Static Torque 16 ft-lb
Top product applications:
- NEMA C-Face Motor/Reducer
- Between Motor and Reducer
- NEMA C-Face Motor
C-Face Clutch, Clutch/Brake Type C-Face, Coil Voltage 90V DC, Operating Voltage 90V DC, Enclosure Type Vented, Static Torque 16 ft-lb, Motor Frame Designation 56C NEMA, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Lead Length 30 in, Overall Length 6.75 in, Overall Width 6.75 in, Phase -, Service Factor -, Standards CSA Certified, UL Listed, Application -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.30
- Package Width: 8.90
- Package Height: 11.00
- Package Weight: 14.96
