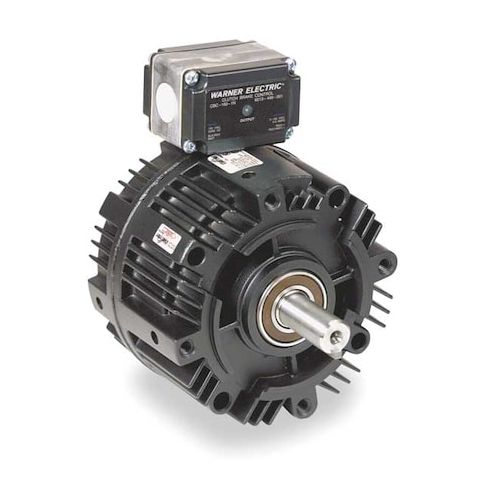

C-Face Brake, Torque 95 Ft-Lb, 90 DC MPN:EM215-20
C-Face Brake, Torque 95 Ft-Lb, 90 DC
The Warner Electric C-Face Brake is a reliable and efficient solution for controlling speed and torque in industrial applications. Suitable for use with NEMA C-Face motors or between the motor and reducer, this magnetic clutch/brake offers a static torque of 95 ft-lb and a maximum speed of 3,600 RPM. Its compact design and vented enclosure make it ideal for a wide range of applications, including material handling, packaging, and conveyor systems. With its UL listed certification and easy mounting hardware, this brake provides a convenient and safe solution for maintaining control and regulating speed in industrial settings.
Top product features:
- C-Face Mounting Location allows for easy installation on NEMA C-Face motors or between motors and reducers.
- Magnetic Clutch/Brake Type provides a reliable and repeatable engagement and disengagement mechanism.
- Static Torque of 95 ft-lb enables the product to handle heavy loads and applications.
Top product applications:
- NEMA C-Face Motor/Reducer
- Between Motor and Reducer
- NEMA C-Face Motor
C-Face Brake, Clutch/Brake Type Magnetic Clutch/Brake, Coil Voltage 24V DC, Enclosure Type Vented, Static Torque 95 ft-lb, Shaft Diameter 1 3/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Overall Length 8.06 in, Overall Width 9.31 in, Phase -, Service Factor -, Standards UL Listed, Application -, Converts -
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 13.40
- Package Height: 13.60
- Package Weight: 27.19
