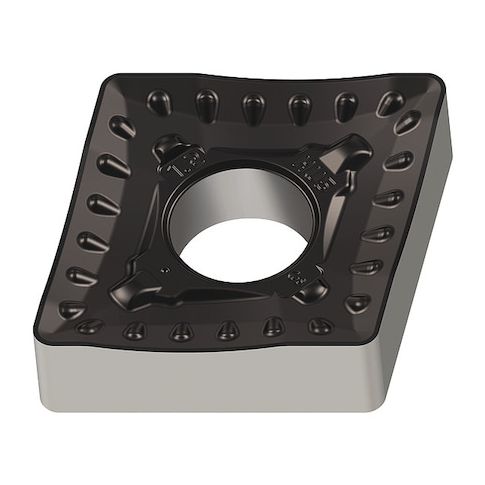

Diamond Turning Insert, 5, CNMM, 3 MPN:7583839
Diamond Turning Insert, 5, CNMM, 3
The Walter Diamond Turning Insert is a precision cutting tool designed for high-performance machining applications. Its unique TiCN+Al2O3+(TiCN) coating and CVD process provide exceptional wear resistance and thermal stability, resulting in longer tool life and improved surface finish. Suitable for use in turning operations, this insert's chip-breaker code HU5 helps to reduce chip formation and improve tool life. Ideal for use in aerospace, automotive, and medical industries where precision and reliability are critical. With a 5/8 in inscribed circle and 0 degree clearance angle, this insert offers versatility and accuracy in a range of machining applications.
Top product features:
- Diamond Turning Insert has a Chip-Breaker Code to control chip formation and improve tool life.
- The insert has a TiCN+Al2O3+(TiCN) coating process for enhanced wear resistance and heat tolerance.
- The insert is designed with a 0-degree clearance angle for precise finishing and minimal material removal.
Top product applications:
- Turning of non-ferrous metals
- Turning of cast iron
- Turning of stainless steel
Diamond Turning Insert, Chip-Breaker Code HU5, Inscribed Circle 5/8 in, TiCN+Al2O3+(TiCN), ANSI Code CNMM543-HU5, Clearance Angle 0 Degrees , Coating Process CVD
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 0.98
- Package Width: 0.98
- Package Height: 0.55
- Package Weight: 0.40
Product info last updated on March 21, 2026 1:49am UTC
Category: Cutting Tools
