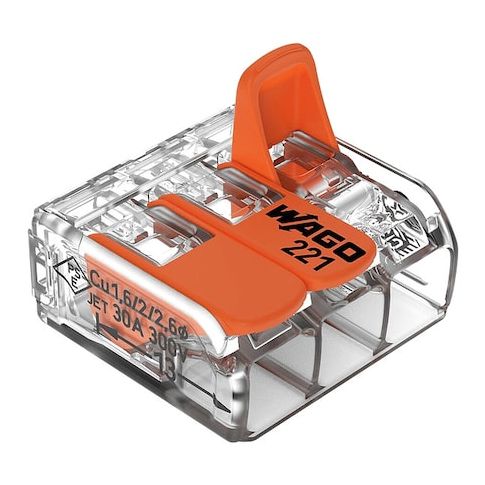

Lever Wire Connector, 10 AWG Max, 3 Port, Transparent, Polycarbonate Insulation, 600 V, 41 A, 30 PK MPN:221-613/K194-4045
Lever Wire Connector, 10 AWG Max, 3 Port, Transparent, Polycarbonate Insulation, 600 V, 41 A, 30 PK
This versatile 3-port lever wire connector is designed for high-current applications, supporting up to 41 amps and 600 volts. Built with polycarbonate insulation and a copper conductor material, it provides reliable connections in harsh environments. Suitable for use in a range of industries, including industrial automation, robotics, and medical equipment. The transparent housing allows for easy wire identification, while the compact design saves space in tight installations. With a maximum operating temperature of 185 degrees Fahrenheit, it can handle demanding applications and is compliant with IEC/EN and UL standards.
Top product features:
- Lever action allows for easy wire connection and disconnection.
- Supports stranded wire sizes from 20 AWG to 10 AWG.
- Polycarbonate insulation provides electrical insulation and durability.
Top product applications:
- Wire harnessing in industrial automation
- Automotive wiring systems
- Electrical panel assembly
Lever Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 20 AWG, For Maximum Wire Size - Stranded 10 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.39 in, Overall Length 0.83 in, Overall Width 0.9 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 41 A
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.40
- Package Width: 3.50
- Package Height: 1.70
- Package Weight: 0.34
Product info last updated on February 4, 2026 12:58am UTC
Category: Electrical Connectors
