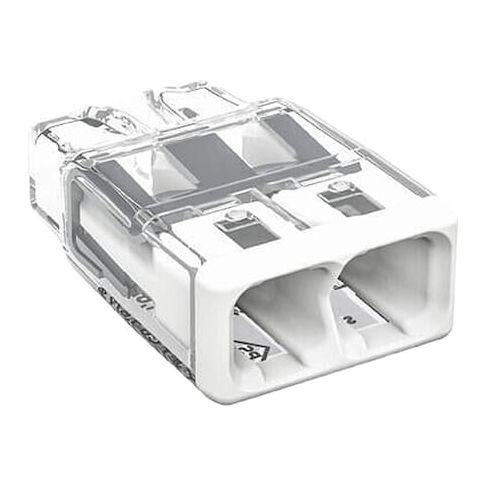

Push-In Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A MPN:2773-402/K000-0002
Push-In Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A
The WAGO Push-In Wire Connector is a versatile and reliable connection solution for a wide range of applications. Suitable for use in copper conductors, this transparent polycarbonate-insulated connector is rated for 600V and 32A, making it ideal for use in industrial and commercial settings. Its push-in design allows for easy and secure connections, reducing installation time and increasing productivity. The connector's compact size and high operating temperature make it suitable for use in harsh environments, making it a great choice for applications such as electrical panels, control panels, and automation systems.
Top product features:
- Push-In Wire Connector for easy and secure wire installation
- Polycarbonate Insulation for electrical insulation and protection
- Maximum Operating Temperature of 185 Degrees F for reliable performance in high-temperature applications
Top product applications:
- Industrial control panels
- Automotive electrical systems
- Medical device assembly
Push-In Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 18 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.24 in, Overall Length 0.73 in, Overall Width 0.45 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant No, Standards IEC, UL Listed
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.40
- Package Width: 3.50
- Package Height: 1.60
- Package Weight: 0.35
Product info last updated on March 17, 2026 6:49am UTC
Category: Electrical Connectors
