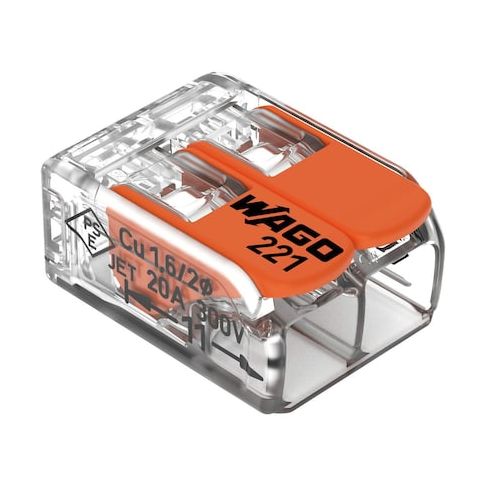

Lever Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A, 100PK MPN:221-412/K194-4045
Lever Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A, 100PK
The WAGO Lever Wire Connector is a reliable and efficient solution for connecting conductors in a variety of applications. With a transparent polycarbonate insulation and a maximum operating temperature of 185°F, this connector can withstand harsh environments. Its 2-port design and 32A current rating make it ideal for use in industrial settings, such as control panels and automation systems. The connector's lever-type design provides easy and secure connections, reducing the risk of electrical shock and ensuring a safe working environment. Its compact size and UL listing make it a great choice for a wide range of applications.
Top product features:
- Lever-operated design for easy connection and disconnection of wires
- Polycarbonate insulation for high-temperature and electrical safety
- Supports up to 32 A of current and 600 V of voltage for reliable circuit connections
Top product applications:
- Industrial Control Panels
- Electrical Distribution Systems
- Automotive Wiring Harnesses
Lever Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 0.52 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 32 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.30
- Package Width: 3.50
- Package Height: 1.70
- Package Weight: 0.41
Product info last updated on February 4, 2026 6:59pm UTC
Category: Electrical Connectors
