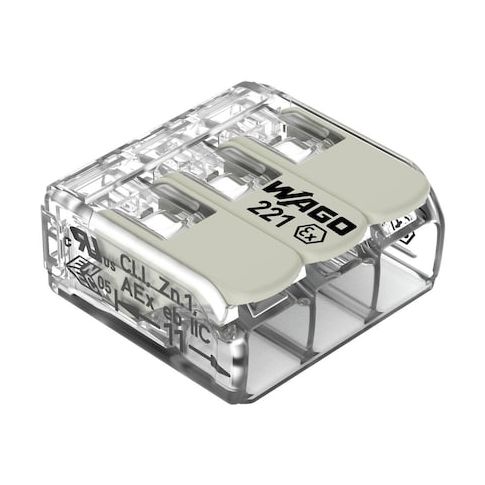

Push-In Wire Connector, 12 AWG Max, 3 Port, Gray, Polycarbonate Insulation, 440 V, 20 A MPN:221-483
Push-In Wire Connector, 12 AWG Max, 3 Port, Gray, Polycarbonate Insulation, 440 V, 20 A
The WAGO Push-In Wire Connector is a reliable and efficient solution for connecting and managing electrical wires. With a maximum operating temperature of 221°F and a voltage rating of 440V, this connector is suitable for a wide range of applications, including industrial control systems and automation equipment. The push-in design makes it easy to connect and disconnect wires, reducing installation time and increasing productivity. The connector's polycarbonate insulation and tin finish ensure durability and resistance to corrosion, making it an ideal choice for applications in harsh environments. Suitable for use in various industries, including manufacturing and energy.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires without the need for tools or stripping.
- Polycarbonate Insulation provides high-temperature resistance up to 221 Degrees F.
- The connector has a maximum operating voltage of 440 V and a maximum current rating of 20 A.
Top product applications:
- Electrical Panel Installation
- Industrial Automation Systems
- Commercial Lighting Systems
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 440 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 0.74 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards AEx, ATEX, CCA, CCC, CCCEx, EAC, ENEC 05, IECEx, LR, UL, Contact Finish Tin
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on March 1, 2026 1:12am UTC
Category: Electrical Connectors
