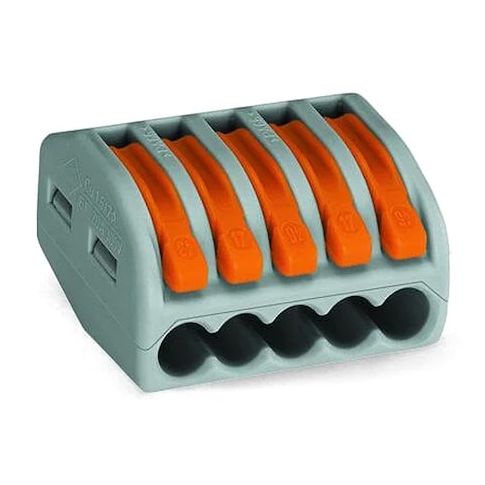

Push-In Wire Connector, 12 AWG Max, 5 Port, Gray, None Insulation, 600 V, 20 A MPN:222-415
Push-In Wire Connector, 12 AWG Max, 5 Port, Gray, None Insulation, 600 V, 20 A
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 28 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 0.81 in, Overall Width 1.05 in, Connector Type Lever, UL 94 Flammability Rating V-0, Number of Ports 5, RoHS Compliant Yes, Standards ABS, DNV GL, ENEC, LR, UL, Contact Finish Tin, Contact Material Copper
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 0.80
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on March 3, 2026 4:53pm UTC
Category: Electrical Connectors
