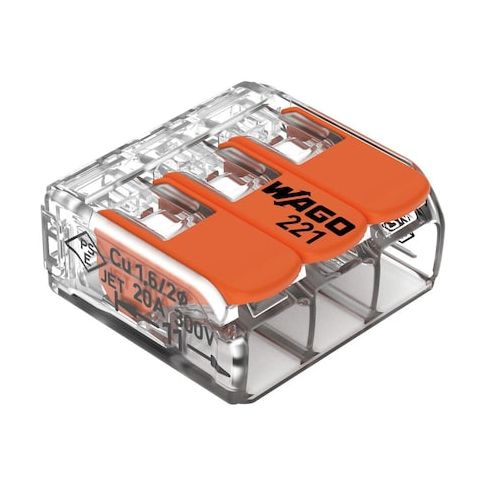

Push-In Wire Connector, 12 AWG Max, 3 Port, Orange, Polycarbonate Insulation, 600 V, 32 A MPN:221-413
Push-In Wire Connector, 12 AWG Max, 3 Port, Orange, Polycarbonate Insulation, 600 V, 32 A
This versatile Push-In Wire Connector from WAGO is designed for use with copper conductors and is suitable for a variety of applications, including industrial control systems, automation, and electrical panel building. Its 3-port design allows for easy connections and disconnections, while its polycarbonate insulation provides excellent durability and resistance to heat. With a maximum operating temperature of 221°F and a maximum voltage of 600V, this connector is ideal for use in high-temperature and high-voltage applications. Its compact size and easy-to-use design make it a great choice for use in tight spaces and for applications where speed and efficiency are crucial.
Top product features:
- Push-In Wire Connector design allows for easy and quick connection of wires without the need for tools.
- The connector is rated for 600 V and 32 A, making it suitable for high-voltage applications.
- The connector's lever-type design provides a secure and reliable connection that can withstand high operating temperatures up to 221 Degrees F.
Top product applications:
- Electrical Panel Installations
- Automotive Wiring Harnesses
- Industrial Control Systems
Push-In Wire Connector, Color Orange, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 0.74 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards ABS, CCA, DNV GL, ENEC, LR, UL, Contact Finish Tin, Contact Material Copper
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.70
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on January 21, 2026 5:55pm UTC
Category: Electrical Connectors
