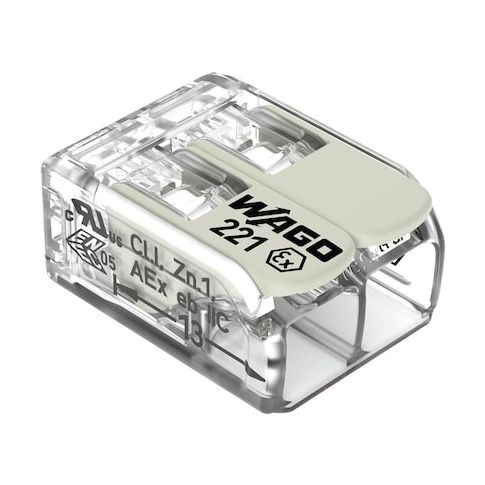

Push-In Wire Connector, 10 AWG Max, 2 Port, Gray, Polycarbonate Insulation, 440 V, 30 A MPN:221-682
Push-In Wire Connector, 10 AWG Max, 2 Port, Gray, Polycarbonate Insulation, 440 V, 30 A
This WAGO Push-In Wire Connector is a reliable and efficient solution for various applications, including industrial automation, electrical engineering, and robotics. Its push-in design allows for quick and easy connection of 10 AWG wires, reducing installation time and increasing productivity. The connector's polycarbonate insulation and high operating temperature rating ensure durability and reliability in demanding environments. Suitable for use in hazardous locations, this connector meets strict safety standards, including UL, ATEX, and IECEx. Its compact size and low weight make it ideal for space-constrained applications, while its RoHS compliance ensures environmental sustainability.
Top product features:
- Push-In Wire Connector allows for easy connection and disconnection of wires without the need for tools.
- The connector has a maximum operating temperature of 221 Degrees F, enabling reliable performance in high-temperature environments.
- The connector is rated for 440 V and 30 A, making it suitable for use in high-voltage applications.
Top product applications:
- Industrial control panel wiring
- Motor control systems
- Automotive electrical systems
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 20 AWG, For Maximum Wire Size - Stranded 10 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 440 V, Overall Height 0.4 in, Overall Length 0.83 in, Overall Width 0.63 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant Yes, Standards AEx, ATEX, CCA, CCC, CCCEx, EAC, ENEC 05, IECEx, LR, UL, Contact Finish Tin
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.60
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on February 17, 2026 3:56pm UTC
Category: Electrical Connectors
