Push-In Wire Connector, 12 AWG Max, 3 Port, Gray, Polycarbonate Insulation, 600 V, 20 A MPN:222-413
Push-In Wire Connector, 12 AWG Max, 3 Port, Gray, Polycarbonate Insulation, 600 V, 20 A

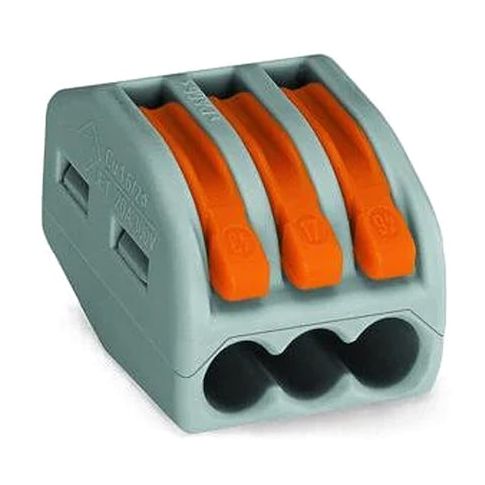

The WAGO Push-In Wire Connector is a reliable and efficient solution for electrical connections. Its 3-port design allows for easy connection of multiple wires, while its 12 AWG max capacity ensures compatibility with a wide range of wire sizes. The connector's polycarbonate insulation and copper contacts provide excellent electrical performance, withstanding up to 600V and 20A. Suitable for use in various applications, including industrial control panels, automation systems, and electrical enclosures, this connector offers a secure and long-lasting connection. Its compact size and ease of use make it an ideal choice for professionals and DIYers alike.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires without the need for tools.
- The product is rated for a maximum operating temperature of 185 Degrees F, enabling its use in a variety of environments.
- The connector is made with polycarbonate insulation, providing a flame-resistant and durable housing.
Top product applications:
- Wire Harness Assembly
- Automotive Electrical Systems
- Industrial Control Panel Build-Out
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 28 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.57 in, Overall Length 0.81 in, Overall Width 0.67 in, Connector Type Lever, UL 94 Flammability Rating V-0, Number of Ports 3, RoHS Compliant Yes, Standards ABS, DNV GL, ENEC, LR, UL, Contact Finish Tin, Contact Material Copper
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.70
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on February 16, 2026 1:04pm UTC
Category: Electrical Connectors
