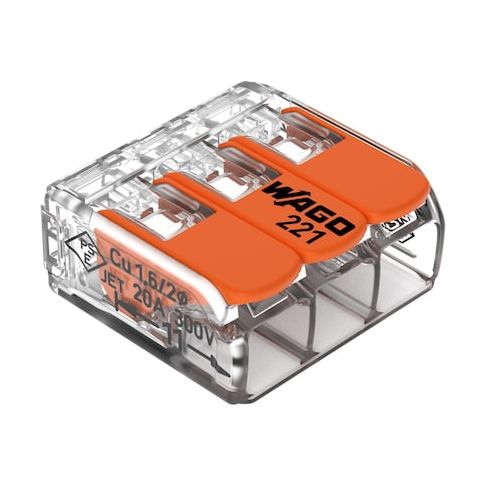

Lever Wire Connector, 12 AWG Max, 3 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A, 50 PK MPN:221-413/K194-4045
Lever Wire Connector, 12 AWG Max, 3 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A, 50 PK
The WAGO Lever Wire Connector offers a reliable and efficient solution for connecting conductors in a variety of applications. With a maximum operating temperature of 185°F and a maximum voltage of 600V, this connector is suitable for use in industrial and commercial settings. The lever-style design makes it easy to connect and disconnect wires, while the polycarbonate insulation provides excellent protection against electrical shock. Ideal for use in control panels, automation systems, and other high-density applications, this connector is a convenient and cost-effective solution for professionals and hobbyists alike. Its compact size and high current rating make it an excellent choice.
Top product features:
- Polycarbonate insulation provides electrical insulation and durability
- UL 94 Flammability Rating V-2 indicates the connector meets safety standards for reduced fire hazard
- Three ports enable connection of multiple wires to a single point
Top product applications:
- Control Panel Connections
- Building Automation Systems
- Industrial Automation Systems
Lever Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 0.74 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant No, Standards IEC/EN, UL Listed, Compatible with Product Type Conductor, Current 32 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.40
- Package Width: 3.60
- Package Height: 1.60
- Package Weight: 0.33
Product info last updated on January 14, 2026 11:09pm UTC
Category: Electrical Connectors
