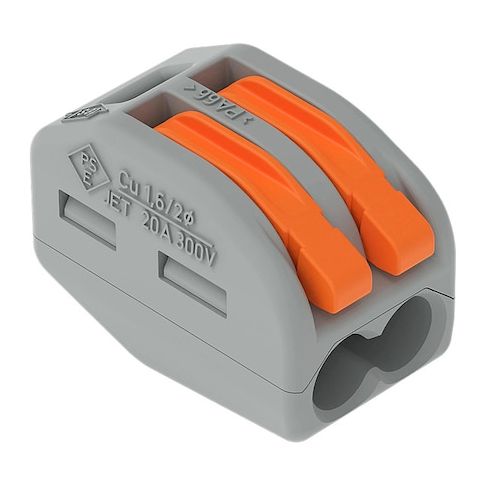

Push-In Wire Connector, 12 AWG Max, 2 Port, Gray, None Insulation, 600 V, 20 A MPN:222-412
Push-In Wire Connector, 12 AWG Max, 2 Port, Gray, None Insulation, 600 V, 20 A
Easily connect and disconnect wires in a wide range of applications with the WAGO Push-In Wire Connector. This versatile connector features a simple push-in design that allows for quick and secure connections on conductors up to 12 AWG. Suitable for use in industrial and commercial settings, it offers high reliability and durability in harsh environments. The connector's compact size and lightweight design make it ideal for use in space-constrained areas, such as control panels and automation systems. Its high-temperature rating and UL 94 V-0 flammability rating ensure safe and reliable operation in a variety of applications.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires.
- The connector has a lever-type design for simple and efficient connection.
- The connector can handle a maximum operating temperature of 185 Degrees F.
Top product applications:
- Industrial Control Panels
- Electrical Distribution Systems
- Automotive Wiring Harnesses
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 28 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 185 Degrees F, Maximum Voltage 600 V, Overall Height 0.571 in, Overall Length 0.807 in, Overall Width 0.488 in, Connector Type Lever, UL 94 Flammability Rating V-0, Number of Ports 2, RoHS Compliant Yes, Standards ABS, DNV GL, ENEC, LR, UL, Contact Finish Tin, Contact Material Copper
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.81
- Package Width: 0.49
- Package Height: 0.57
- Package Weight: 0.01
Product info last updated on January 14, 2026 11:53pm UTC
Category: Electrical Connectors
