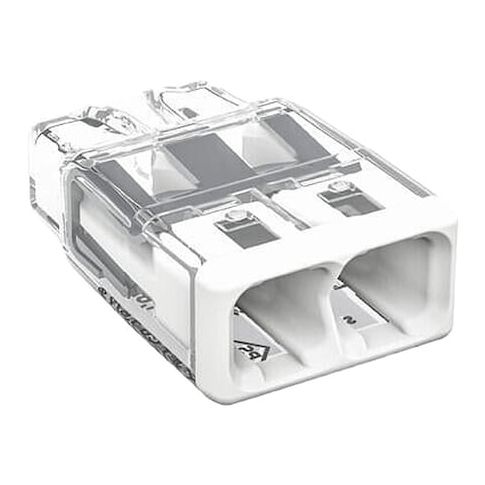

Push-In Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A MPN:2773-402/VE00-0500
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G012470805
Push-In Wire Connector, 12 AWG Max, 2 Port, Transparent, Polycarbonate Insulation, 600 V, 32 A
This transparent push-in wire connector is designed for use with 18 AWG to 12 AWG stranded copper conductors. It features a polycarbonate insulation material and a maximum operating temperature of 221°F. The connector is suitable for applications up to 600V and 32A. Its compact size and transparent design make it ideal for use in a variety of settings, including industrial and commercial environments. The connector's push-in design allows for easy installation and removal, reducing the risk of damage to the wire or connector. It is also UL listed and compliant with IEC standards.
Top product features:
- Push-In wire connector design allows for easy and secure connection of wires without the need for tools.
- Polycarbonate insulation provides a transparent and durable material for the connector.
- The connector has a maximum operating temperature of 221 Degrees F, allowing for use in a variety of applications and environments.
Top product applications:
- Automotive Electrical Systems
- Control Panel Assemblies
- Industrial Automation Systems
Push-In Wire Connector, Color Transparent, For Conductor Material Copper, For Minimum Wire Size - Stranded 18 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.24 in, Overall Length 0.73 in, Overall Width 0.45 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 2, RoHS Compliant No, Standards IEC, UL Listed
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 0.40
- Package Height: 0.20
- Package Weight: 0.00
Product info last updated on January 15, 2026 2:54am UTC
Category: Electrical Connectors
