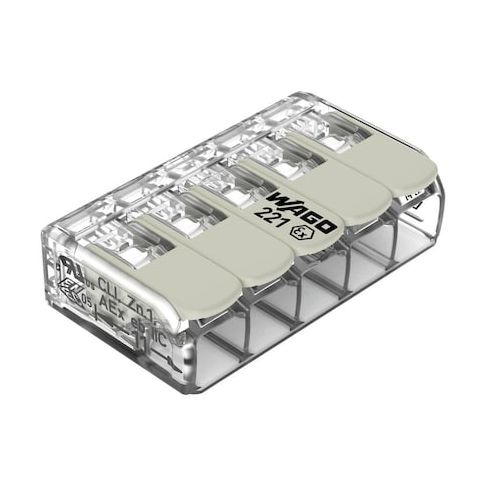

Push-In Wire Connector, 12 AWG Max, 5 Port, Gray, Polycarbonate Insulation, 440 V, 20 A MPN:221-485
Push-In Wire Connector, 12 AWG Max, 5 Port, Gray, Polycarbonate Insulation, 440 V, 20 A
The WAGO Push-In Wire Connector is a reliable and efficient solution for electrical connections. This 5-port connector is designed for use with copper conductors and can handle stranded wires up to 12 AWG. Its polycarbonate insulation and lever-type design make it easy to use and provide a secure connection. The connector is suitable for a variety of applications, including industrial control systems, automation, and renewable energy systems. With a maximum operating temperature of 221°F and a voltage rating of 440V, this connector is a versatile and durable option for many electrical connections.
Top product features:
- Push-In Wire Connector design allows for easy and secure connection of wires
- 5-port configuration enables connection of multiple wires in a single device
- Polycarbonate insulation provides electrical insulation and protects against overheating
Top product applications:
- Industrial Control Panels
- Automotive Wiring Harnesses
- Robotics and Automation Systems
Push-In Wire Connector, Color Gray, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 440 V, Overall Height 0.33 in, Overall Length 0.73 in, Overall Width 1.18 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 5, RoHS Compliant Yes, Standards AEx, ATEX, CCA, CCC, CCCEx, EAC, ENEC 05, IECEx, LR, UL, Contact Finish Tin
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 0.70
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on January 15, 2026 2:09am UTC
Category: Electrical Connectors
