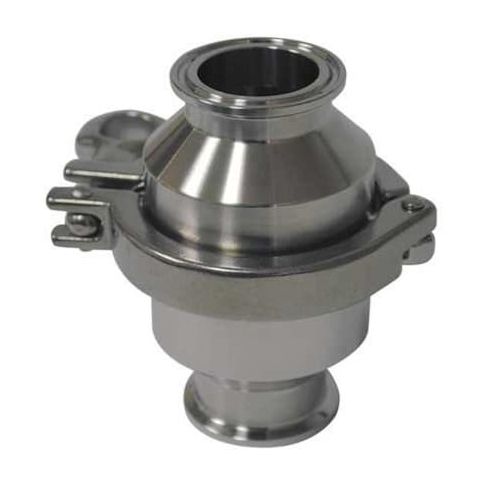

Spring Check Valve, 45C-6 Series, Inline, Clamp x Clamp, 1 1/2 in, 316L Stainless Steel MPN:45C-61.5-E
The Spring Check Valve from VNE is a reliable and efficient solution for various industrial applications. Designed for use in systems where backflow prevention is crucial, this valve ensures smooth flow and prevents reverse flow, reducing wear and tear on equipment. Its compact size and lightweight design make it easy to integrate into existing systems, while its durable construction ensures long-lasting performance. Suitable for use in pharmaceutical, food processing, and other FDA-regulated industries, this valve is a must-have for any facility requiring precise control and safety. Order now and experience the benefits of a hassle-free operation.
Top product features:
- It allows fluid flow in one direction while preventing backflow.
- It has a hex size that is not applicable.
- It is designed to meet FDA standards.
Top product applications:
- Water treatment systems
- Hydraulic systems
- Pneumatic systems
VNE 45C-61.5-E is an inline spring check valve that uses a spring-loaded poppet check mechanism for one-direction flow applications. It is intended for fluid handling systems requiring an inline spring check valve. This valve features a 316L stainless steel body, EPDM seal and seat materials, clamp connections on both ends, and a vertical mounting orientation.
Key Features:
- Valve type: Spring check valve with poppet check mechanism.
- Size and connections: 1 1/2 in nominal valve size with 1 1/2 in clamp connections on side 1 and side 2.
- Body and internal materials: 316L stainless steel body, 316 stainless steel check mechanism, and 316 stainless steel spring.
- Seal materials: EPDM seal and EPDM seat.
- Pressure and flow: 11 psi cracking pressure, 145 psi maximum operating pressure, and 143 gpm flow rating.
- Temperature range: 0 to 200 degrees F.
- Construction details: Inline body style, 4.13 in overall length, 32 RA I.D./O.D. surface finish, and 32 microin average surface roughness.
- Standards: 3A Sanitary Standards
- FDA.
- Mounting: Vertical orientation.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.56
- Package Width: 4.56
- Package Height: 4.56
- Package Weight: 3.50
