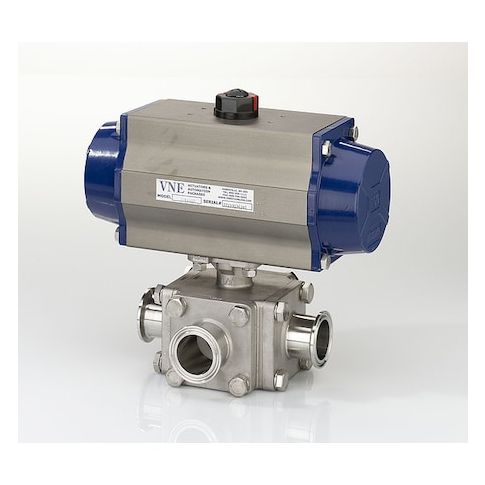

Pneumatic Ball Valve, Pipe Size 3/4" MPN:93CT.75C/63-5S1-XX
Pneumatic Ball Valve, Pipe Size 3/4"
This VNE pneumatic ball valve is a reliable and efficient solution for various industrial applications, including process control and fluid handling. Its three-way design allows for precise control of fluid flow, while its full port style ensures minimal pressure drop and optimal flow rates. The valve's normally closed (NC) operation and fail-safe position provide added security in emergency situations. Constructed from 316 stainless steel, this valve is durable and resistant to corrosion, making it suitable for use in harsh environments. Its compact size and pneumatic actuation make it an ideal choice for a range of industries, including oil and gas, chemical, and pharmaceutical.
Top product features:
- Pneumatically actuated operation allows for remote control of the valve.
- Actuator operation uses air to spring, providing a fail-safe position in the event of power loss.
- The valve is normally closed, ensuring that fluid flow is interrupted when not in use.
Top product applications:
- Air Compressor System
- Process Piping and Fittings
- Laboratory Equipment and Instrumentation
Pneumatically Actuated Three-Way Ball Valve, Actuator Operation Air to Spring, Valve Deactivated State Normally Closed (NC), Included Pilot Solenoid Not Applicable, Fail Safe Position Fail Closed, Body Material 316 Stainless Steel, Valve Construction Three-Piece, Ball Port Style Full Port, Flow Pattern T Flow, Nominal Valve Size 3/4 in, Maximum Pressure - Operating 1,000 psi, Maximum Operating Pressure Differential 120 psi, Maximum Pressure - Steam 60 psi, Inlet Connection Entry Side
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.38
- Package Width: 3.60
- Package Height: 6.40
- Package Weight: 8.20
Product info last updated on April 3, 2026 7:46am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
