Pneumatic Ball Valve, Pipe Size 3" MPN:93CT3.0C/161-6S1-XX

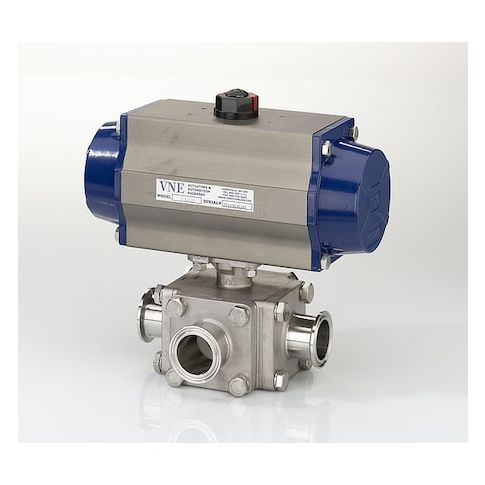

Pneumatic Ball Valve, Pipe Size 3"
The VNE Pneumatic Ball Valve is a reliable and efficient solution for a wide range of applications. This three-way valve features a pneumatically actuated design with air-to-spring operation, ensuring precise control and minimizing wear and tear. With a normally closed (NC) deactivated state, the valve is fail-safe and closes in the event of a power failure. Constructed from 316 stainless steel, the valve is resistant to corrosion and suitable for use in high-pressure applications up to 600 psi. Ideal for use in industrial processes, water treatment, and chemical processing, this valve provides a long-lasting and cost-effective solution for managing fluid flow.
Top product features:
- Pneumatically actuated operation allows for control of the valve using compressed air.
- Actuator operation is air to spring, providing a fail-safe position in case of power loss.
- The valve is normally closed, ensuring a secure shut-off in the event of a malfunction or power failure.
Top product applications:
- Water Treatment and Distribution Systems
- Oil and Gas Production and Processing Facilities
- Chemical Processing Plants
Pneumatically Actuated Three-Way Ball Valve, Actuator Operation Air to Spring, Valve Deactivated State Normally Closed (NC), Included Pilot Solenoid Not Applicable, Fail Safe Position Fail Closed, Body Material 316 Stainless Steel, Valve Construction Three-Piece, Ball Port Style Full Port, Flow Pattern T Flow, Nominal Valve Size 3 in, Maximum Pressure - Operating 600 psi, Maximum Operating Pressure Differential 120 psi, Maximum Pressure - Steam 60 psi, Inlet Connection Entry Side
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.93
- Package Width: 10.00
- Package Height: 10.50
- Package Weight: 110.00
