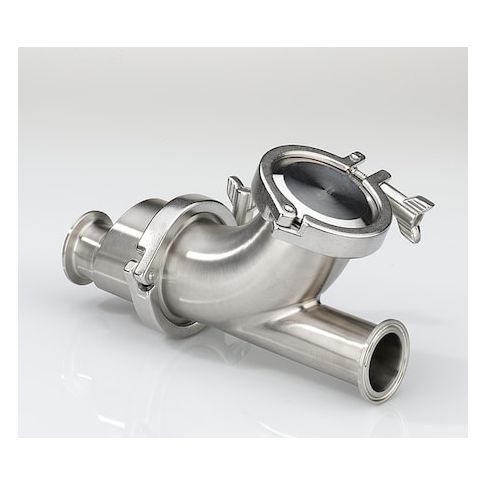

Ball Check Valve, EG45BY-6 Series, Y-Style, 2 in Clamp x Clamp, 316L Stainless Steel, 11 in MPN:EG45BY-62.0-V
The Ball Check Valve from VNE is a reliable and efficient solution for various fluid handling applications. Designed for use in demanding environments, this valve ensures one-way flow and prevents backflow, making it ideal for use in water treatment, chemical processing, and wastewater management systems. Its compact design and durable construction enable easy installation and long-lasting performance, reducing maintenance and downtime. With a lead time of just 10 days, this valve can be quickly integrated into new or existing systems, providing a seamless solution for industries requiring precise fluid control.
Top product features:
- Ball Check Valve allows fluid to flow in one direction while preventing backflow.
- The valve is designed to be used in applications where a one-way flow is required.
- The valve is a blind-shippable item.
Top product applications:
- Water Treatment Systems
- Pumping Systems
- Hydraulic Systems
VNE EG45BY-62.0-V is a 2 in. ball check valve with a Y-style body and clamp connections on both ends. It uses a 316L stainless steel ball check mechanism for one-way flow applications in fluid handling systems and process lines. The valve features a 316L stainless steel body and internal components, FKM seal and seat materials, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Ball check valve with ball check mechanism for use in one-way flow applications
- Size and connections: 2 in. nominal valve size with 2 in. clamp connections on side 1 and side 2
- Body style: Y-style valve body
- Materials: 316L stainless steel body, 316L stainless steel check mechanism, and 316L stainless steel spring
- Seal and seat material: FKM
- Temperature range: 0 to 200 degrees F
- Overall length: 11 in.
- Surface finish: 32 RA I.D./O.D.
- average surface roughness 32 microinch
- Mounting orientation: Horizontal, vertical
- Standards: FDA
- 3-A standard: Meets 3-A sanitary standards
- Silent check: Standard
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 6.30
