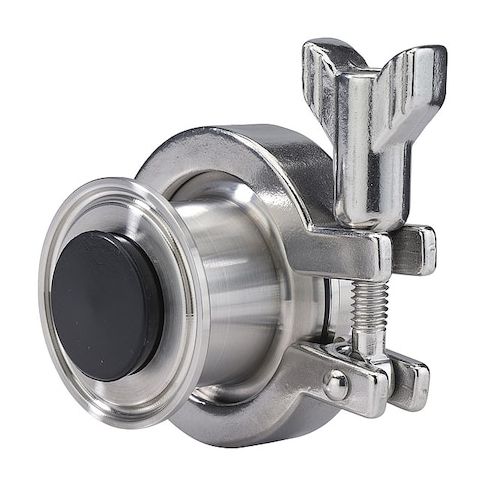

Air Blow Check Valve, EG62C-6L, Inline, Clamp Connection, 3 in Tube Size, 316L Stainless Steel MPN:EG62C-6L3.0-.5-V
The Air Blow Check Valve from VNE is a reliable and efficient component designed for various industrial applications. Its compact design and durable construction make it suitable for use in pneumatic systems, ensuring smooth airflow and preventing backpressure. This check valve is ideal for use in medical devices, laboratory equipment, and other applications where precise control and minimal pressure loss are crucial. Its FDA-compliant design and US origin ensure high-quality standards. With a lead time of 10 days and a minimum order quantity of 1, this product is easily accessible for businesses of all sizes.
Top product features:
- Air Blow Check Valve allows air to flow in one direction and prevents backflow.
- The valve has a hex size that is not applicable, indicating a unique or proprietary design.
- The valve is designed for use in FDA-regulated applications, ensuring compliance with industry standards.
Top product applications:
- Air Compressor Systems
- Medical Device Manufacturing
- Industrial Automation
VNE EG62C-6L3.0-.5-V is an inline air blow check valve designed to support one-way flow control in compressed air and fluid handling systems. It uses a poppet check mechanism and features a 3 in valve size with clamp connections on both ends. The body and internal mechanism are constructed from 316L stainless steel for sanitary process lines where FDA and 3-A Sanitary Standards are specified.
Key Features:
- Valve type: Air blow check valve with inline body style for one-way flow control
- Size: 3 in nominal valve size with 3 in clamp connections on side 1 and side 2
- Materials: 316L stainless steel body, check mechanism, and spring
- FKM seal and seat
- Pressure rating: 60 psi maximum operating pressure
- Temperature range: 0 to 200 degrees F
- Mounting orientation: Horizontal or vertical
- Surface finish: 32 RA I.D./O.D.
- average surface roughness 32 microinch
- Standards: FDA
- 3-A Sanitary Standards: Specified
- Valve series: EG62C-6L
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 1.75
