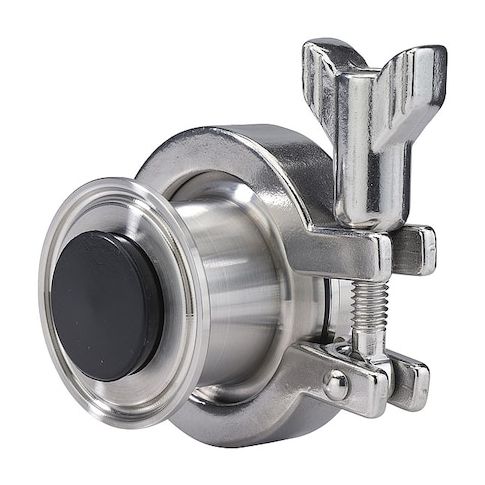

Air Blow Check Valve, EG62C-6L, Inline, Clamp x Clamp, 2 in, 316L Stainless Steel MPN:EG62C-6L2.0-.5-V
The Air Blow Check Valve is a reliable and efficient solution for various industrial applications. This US-made product ensures a smooth flow of air while preventing backflow, making it ideal for use in medical, laboratory, and cleanroom environments where contamination control is crucial. Its compact design and lightweight construction make it easy to integrate into existing systems, while its durable materials ensure long-lasting performance. With a lead time of just 10 days, businesses can quickly respond to changing demands and maintain a competitive edge. Ideal for use in medical equipment, laboratory settings, and cleanrooms.
Top product features:
- Air Blow Check Valve prevents backflow and ensures one-way airflow.
- It has a compact hex design for efficient installation and reduced space requirements.
- It is designed for use in applications where a reliable air flow check is necessary.
Top product applications:
- Air Compressor Systems
- Automotive Air Brake Systems
- Industrial Air Purging Systems
VNE EG62C-6L Air Blow Check Valve is an inline, one-way valve for fluid handling systems with clamp connections. It uses a poppet check mechanism for one-direction flow applications. This 2 in. valve features a 316L stainless steel body and internal components, FKM seal and seat materials, and specified mounting orientations include horizontal and vertical.
Key Features:
- - Valve type: Air blow check valve with inline body style
- - Size: 2 in. nominal valve size with 2 in. side 1 and side 2 connections
- - Connections: Clamp x clamp
- - Body material: 316L stainless steel
- - Check mechanism: Poppet design with 316L stainless steel check mechanism and spring
- - Seal and seat material: FKM
- - Operating pressure: 60 psi maximum
- - Operating temperature range: 0 to 200 degrees F
- - Surface finish: 32 RA I.D./O.D.
- average surface roughness 32 microinch
- - Mounting orientation: Horizontal or vertical
- - Standards: FDA
- - 3-A standard: Meets 3-A Sanitary Standards
- - Valve series: EG62C-6L
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 1.45
