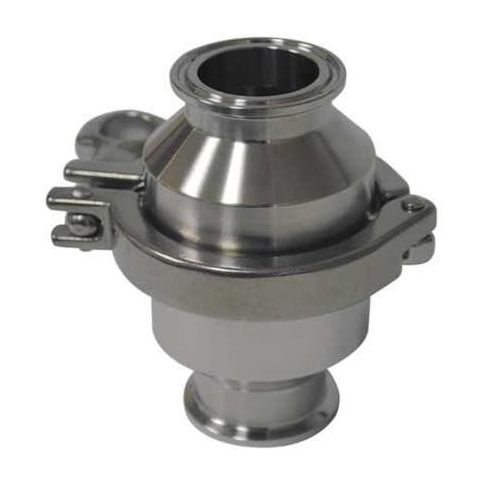

2-1/2" Stainless Steel Spring Check Valve MPN:45C-62.5-V
The 2-1/2in Stainless Steel Spring Check Valve from VNE is a reliable and durable solution for various industrial applications. Its FDA Class VI seats ensure compliance with strict hygiene standards, making it ideal for use in food and beverage processing, pharmaceutical, and other high-hydgiene industries. The valve's compact design and easy installation make it a convenient fit for a range of systems, including piping and tank connections. Its spring-loaded design also provides a smooth and quiet operation, minimizing noise and wear. This valve is perfect for applications where a reliable and sanitary check valve is required.
Top product features:
- Stainless Steel construction for durability and resistance to corrosion
- Spring-loaded check valve design to prevent backflow and ensure fluid flow in one direction
- FDA Class VI Seats for compliance with medical and food-grade standards
Top product applications:
- Water Treatment Systems
- Food Processing Equipment
- Pharmaceutical Manufacturing Equipment
VNE 45C-62.5-V is a 2-1/2 in. inline stainless steel spring check valve with clamp connections on both ends. Uses a spring-loaded poppet check mechanism for directional flow control in compatible fluid handling systems. This valve is rated for vertical mounting and is constructed with a T316L stainless steel body and 316L stainless steel internal components.
Key Features:
- Valve type: Spring check valve with poppet check mechanism
- Size: 2-1/2 in. nominal valve size, pipe size, tube size, and clamp connection
- Body style: Inline design for straight-through installation
- Body material: T316L stainless steel
- Check mechanism material: 316L stainless steel
- Spring material: 316L stainless steel
- Seal and seat material: FKM
- Cracking pressure: 1.17 psi
- Flow rating: 610 gpm
- Maximum operating pressure: 145 psi
- Temperature range: 0 to 200 degrees F
- Surface finish: 20 RA ID
- Standards and certifications: 3A Sanitary Standards
- FDA Class VI seats
- Mounting position: Vertical
- Overall length: 5.38 in.
- Silent check: Standard
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 5.50
- Package Weight: 7.10
