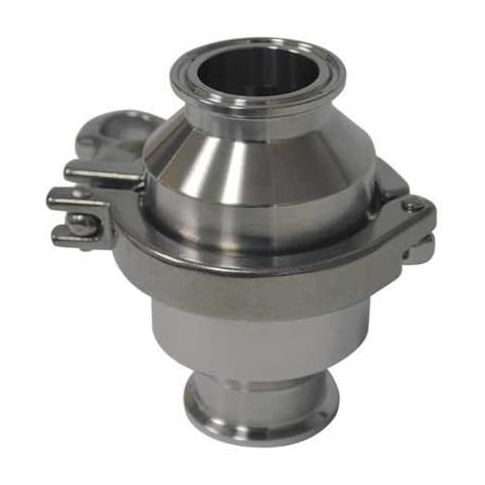

Spring Check Valve, 45C-6 Series, 2 in, Inline, Clamp Connection, T316L Stainless Steel MPN:45C-62.0-V
This 2in Stainless Steel Spring Check Valve from VNE is designed for reliable fluid flow control in a variety of applications, including water treatment, chemical processing, and food and beverage industries. The FDA Class VI seats ensure compliance with strict regulatory standards, making it suitable for use in medical and pharmaceutical applications. The valve's compact size and lightweight design make it ideal for use in tight spaces, while its durable construction ensures long-lasting performance. Its ease of installation and maintenance also make it a popular choice among professionals in the industry.
Top product features:
- Stainless Steel construction for durability and resistance to corrosion
- FDA Class VI Seats for compliance with food-grade standards
- Spring-loaded check valve design for automatic shut-off and flow control
Top product applications:
- Water Treatment Systems
- Gas Distribution Systems
- Medical Equipment Manufacturing
VNE 45C-62.0-V is an inline spring check valve for fluid handling systems. It features a spring-loaded poppet check mechanism for one-way flow control, a T316L stainless steel body, clamp connections on both ends, and a 2 in valve size for tube or pipe connections. The valve is intended for vertical mounting.
Key Features:
- Spring-loaded poppet check mechanism for one-way flow control
- Body Material: T316L stainless steel
- Check Mechanism Material: 316L stainless steel
- Spring Material: 316L stainless steel
- Seal/Seat Material: FKM
- Connection Type: Clamp x Clamp
- Nominal Valve Size: 2 in
- Overall Length: 5.06 in
- Cracking Pressure: 1.28 psi
- Flow Rating: 520 gpm
- Maximum Operating Pressure: 145 psi
- Operating Temperature Range: 0 to 200 Degrees F
- Mounting Position: Vertical
- Surface Finish: 20 RA I.D.
- 3-A Standard: 3A
- Seat Standard: FDA Class VI
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.50
- Package Height: 5.50
- Package Weight: 3.84
