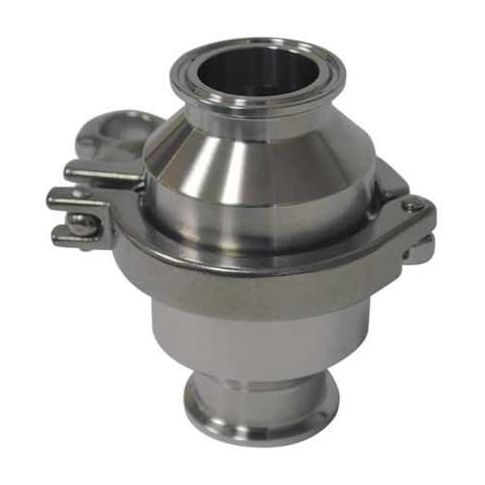

1/2" Stainless Steel Spring Check Valve MPN:45C-6.5-V
This 1/2in Stainless Steel Spring Check Valve from VNE is designed for reliable flow control in a variety of applications, including pharmaceutical, food processing, and chemical handling. The FDA Class VI seats ensure compliance with strict industry standards. The valve's compact size and lightweight design make it ideal for use in tight spaces and remote areas. Its stainless steel construction provides durability and resistance to corrosion, ensuring long-lasting performance in harsh environments. Suitable for use in water treatment, oil and gas, and other industrial settings, this valve offers a reliable solution for maintaining consistent flow and preventing backflow.
Top product features:
- Stainless Steel construction provides durability and resistance to corrosion
- Spring check valve design allows for one-way fluid flow control
- FDA Class VI Seats ensure compliance with high-quality standards for medical and food-grade applications
Top product applications:
- Water Treatment Systems
- Food and Beverage Processing Plants
- Pharmaceutical Manufacturing Facilities
The VNE 45C-6.5-V 1/2 in. stainless steel spring check valve is an inline one-way valve with a spring-loaded poppet mechanism for directional fluid flow applications. It features clamp connections on both ends for sanitary fluid handling systems with compatible backflow-control and pressure-rating requirements. The valve is rated for vertical mounting and is constructed with a T316L stainless steel body, a 316L stainless steel check mechanism and spring, and FKM seal and seat materials.
Key Features:
- Valve type: Spring check valve with poppet check mechanism for one-way flow applications.
- Body style: Inline body with 1/2 in. nominal valve size, pipe size, tube size, and clamp x clamp connections.
- Materials: T316L stainless steel body, 316L stainless steel spring, and 316L stainless steel check mechanism.
- Seal and seat material: FKM.
- Pressure and flow: 3.39 psi cracking pressure, 25 gpm flow rate, and 145 psi maximum operating pressure.
- Temperature range: 0 to 200 degrees F.
- Surface finish: 20 RA ID average surface roughness.
- Standards: 3A Sanitary Standards and FDA Class VI seats.
- Installation: Vertical mounting orientation.
- Dimensions: 3.5 in. overall length.
- Silent check configuration: Standard.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.50
- Package Height: 3.00
- Package Weight: 1.45
