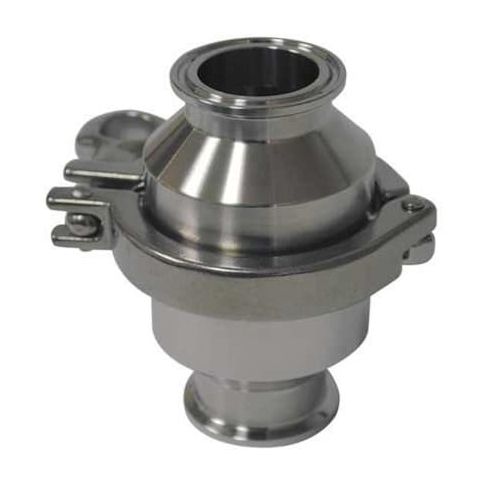

3/4" Stainless Steel Spring Check Valve MPN:45C-6.75-V
This 3/4in Stainless Steel Spring Check Valve from VNE is a reliable and durable solution for various applications. Its FDA Class VI Seats ensure compliance with strict sanitary standards, making it suitable for use in food processing, pharmaceutical, and biotechnology industries. The valve's compact design and lightweight construction facilitate easy installation and maintenance, while its stainless steel material resists corrosion and withstands harsh environments. Ideal for use in piping systems, this valve is also perfect for applications requiring precise flow control and backflow prevention. Its versatility and reliability make it a valuable addition to any industrial setup.
Top product features:
- FDA Class VI Seats
- Stainless Steel Construction
- Spring Check Valve Functionality
Top product applications:
- Sanitary Equipment
- Water Treatment Systems
- Food Processing Plants
The VNE 45C-6.75-V is a 3/4 in T316L stainless steel spring check valve with an inline body and clamp connections on both ends. It features a spring-loaded poppet check mechanism for one-direction flow applications. This valve is used in fluid handling systems requiring a T316L stainless steel spring check valve with clamp connections and the listed pressure, temperature, and material specifications.
Key Features:
- Valve type: Spring check valve with poppet check mechanism.
- Material: T316L stainless steel body with 316L stainless steel check mechanism and spring.
- Connections: 3/4 in clamp x clamp.
- Maximum operating pressure: 145 psi.
- Cracking pressure: 3.95 psi.
- Flow rating: 46 gpm.
- Temperature range: 0 to 200 degrees F.
- Seal and seat material: FKM.
- Mounting orientation: Vertical.
- Surface finish: 20 RA ID.
- Standards: 3A
- FDA Class VI seats.
- Body style: Inline.
- Overall length: 3.5 in.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.40
