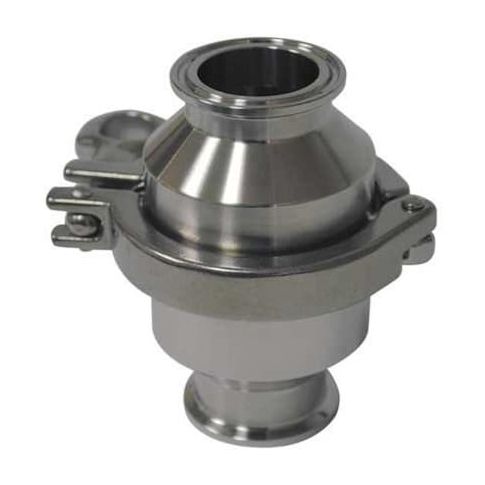

1" Stainless Steel Spring Check Valve MPN:45C-61.0-V
This 1in Stainless Steel Spring Check Valve from VNE is designed for high-performance applications where reliability and durability are paramount. The FDA Class VI seats ensure compliance with stringent medical and food processing standards. Ideal for use in pharmaceutical, biotech, and food processing industries, this valve provides a secure flow path and prevents backflow, minimizing the risk of contamination and product waste. Its compact size and lightweight design make it easy to integrate into existing systems, while its quick lead time and low minimum order quantity make it an attractive solution for both small and large-scale operations.
Top product features:
- Stainless Steel construction provides durability and resistance to corrosion
- FDA Class VI Seats ensure compliance with medical-grade standards
- 1in size allows for precise flow control and compact installation
Top product applications:
- Medical Equipment
- Water Treatment Systems
- Industrial Process Control
VNE 45C-61.0-V 1 is an inline stainless steel spring check valve with a spring-loaded poppet. It uses a spring-loaded poppet check mechanism intended for one-way flow control. For fluid handling systems with 1 in clamp connections and vertical mounting, it features a T316L stainless steel body with 316L stainless steel internal components.
Key Features:
- Valve type: Spring check valve with poppet check mechanism for one-way flow control
- Body material: T316L stainless steel
- Check mechanism material: 316L stainless steel
- Spring material: 316L stainless steel
- Seal and seat material: FKM
- Connection type: Clamp x Clamp, 1 in
- Valve body style: Inline
- Mounting position: Vertical
- Cracking pressure: 1.05 psi
- Maximum operating pressure: 145 psi
- Flow rating: 103 gpm
- Operating temperature range: 0 to 200 degrees F
- Overall length: 4.13 in
- Surface finish: 20 RA ID
- 3-A standard: 3A
- Seats meet FDA Class VI standards
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.00
- Package Height: 4.50
- Package Weight: 2.85
