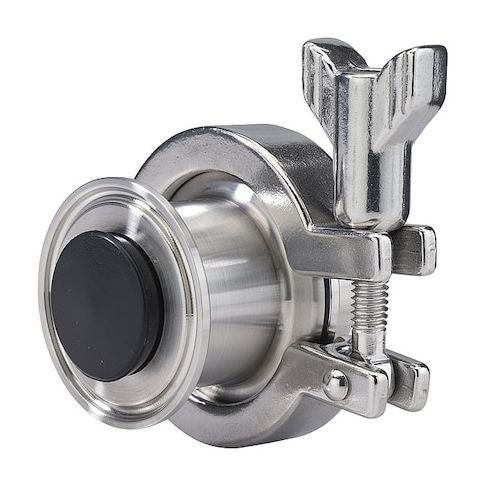

Air Blow Check Valve, EG62C-6L, Inline, 4 in Clamp Connection, 316L Stainless Steel MPN:EG62C-6L4.0-.5-V
The Air Blow Check Valve is a reliable and efficient solution for various applications, including medical, industrial, and laboratory settings. Its compact design and lightweight construction make it easy to integrate into existing systems, while its durable construction ensures consistent performance over time. The valve is ideal for use in applications where air flow needs to be controlled, such as in pneumatic systems, ventilation systems, or medical equipment. With its fast lead time and flexible packaging options, this product is perfect for businesses looking to quickly and easily meet their air flow control needs.
Top product features:
- Air Blow Check Valve allows air to enter while preventing backflow
- Check Valve design prevents backflow
- Ships in 10 days
Top product applications:
- Air compressor systems for pneumatic tools
- Industrial air supply lines for machinery
- Medical air handling systems for equipment maintenance
VNE EG62C-6L air blow check valve is an inline, one-way valve for compressed air flow and blow-off service. It uses a poppet check mechanism for one-direction compressed air flow applications in compatible pneumatic systems within the specified pressure and temperature ratings. This valve features a 316L stainless steel body and internal mechanism, with 4 in clamp connections on both ends for 4 in tube systems.
Key Features:
- Valve type: Air blow check valve with inline body style
- Nominal size: 4 in
- Connections: 4 in clamp on side 1 and 4 in clamp on side 2
- Body material: 316L stainless steel
- Material of construction: T316L stainless steel
- Check mechanism: Poppet
- Check mechanism material: 316L stainless steel
- Spring material: 316L stainless steel
- Seal and seat material: FKM
- Pressure rating: 60 psi maximum operating pressure
- Temperature range: 0 to 200 degrees F
- Surface finish: 32 RA I.D./O.D.
- average surface roughness 32 microinch
- Mounting orientation: Horizontal or vertical
- Standards: FDA
- 3-A standard: Meets 3A Sanitary Standards
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 2.25
