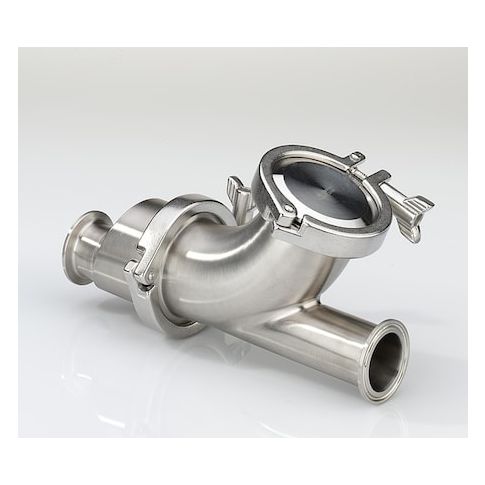

Ball Check Valve, EG45BY-6 Series, Y-Style, 2 1/2 in Clamp, 316L Stainless Steel, 14.13 in MPN:EG45BY-62.5
Ball Check Valve, EG45BY-6 Series, Y-Style, 2 1/2 in Clamp, 316L Stainless Steel, 14.13 in
VNE EG45BY-62.5 is a 2 1/2 in. ball check valve with a Y-style body and clamp connections on both ends. It uses a 316L stainless steel ball check mechanism for one-direction flow and reverse-flow control in fluid handling lines. This valve is for sanitary process system applications and is rated for horizontal or vertical installation.
Key Features:
- Body and wetted construction: T316L stainless steel body with 316L stainless steel check mechanism and 316L stainless steel spring.
- Connection size and type: 2 1/2 in. clamp connection on side 1 and side 2.
- Seal and seat material: Buna-N seal and Buna-N seat.
- Sanitary finish: 32 RA I.D./O.D. surface finish with average surface roughness of 32 micro-in.
- Standards: 3A Sanitary Standards
- FDA.
- Operating temperature range: 0 to 200 degrees F.
- Valve configuration: Y-style body with ball check mechanism.
- Mounting orientation: Horizontal, vertical.
- Overall length: 14.13 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.12
- Package Width: 14.12
- Package Height: 14.12
- Package Weight: 10.20
Product info last updated on February 2, 2026 11:42am UTC
Category: Pipes, Valves and Fittings
