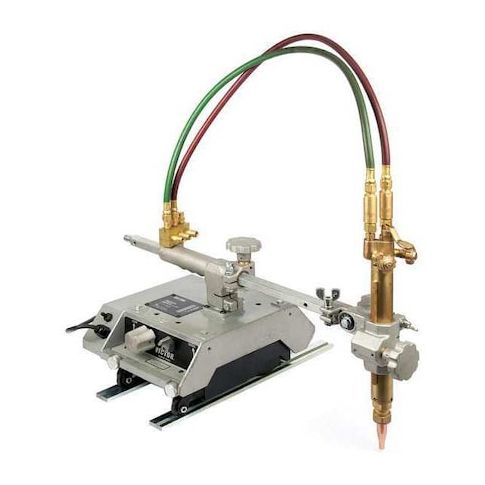

VCM Straight Line Cutting Machine (0200-0240), 115V, 12 ft Rail, Circle & Straight Cutting MPN:0200-0240
Free Shipping
In Stock
The Victor VCM 0200-0240 Straight Line Cutting Machine is a versatile and powerful tool designed for various cutting applications. With a 115V single-phase power source and adjustable travel speed of 1-60 inches per minute, this machine can handle both straight line and circle cutting tasks with ease. Its 12-foot rail provides guided movement, while hand-adjustment thumb screws offer precise control. Suitable for a range of industries, including fabrication, metalworking, and construction, this machine is ideal for cutting circles from 4 to 96 inches in diameter. Its durability and precision make it a valuable addition to any workshop or facility.
Top product features:
- Travel speed is adjustable from 1 to 60 inches per minute.
- The machine accommodates cutting circles from 4 to 96 inches in diameter.
- It includes hand-adjustment thumb screws for precise control.
Top product applications:
- Straight line cutting applications
- Circle cutting applications
- Fabrication shops
The VICTOR 0200-0240 Straight Line Cutting Machine is part of the Victor VCM series and operates on 115 V single-phase power. It is designed for both straight line and circle cutting applications, with a travel speed adjustable from 1 to 60 inches per minute. The machine accommodates cutting circles from 4 to 96 inches in diameter and includes a 12-foot rail for guided movement. It is compatible with the 48RJ39 cutting torch series and is equipped with hand-adjustment thumb screws for precise control.
Key Features:
- - Series: Victor VCM
- - Input Power: 115 V, single phase, 60 Hz
- - Speed Range: 1 to 60 in/min (maximum travel speed 60 in/min)
- - Cutting Capability: Straight line and circle cutting
- - Cutting Circle Diameter Range: 4 in minimum to 96 in maximum
- - Compatible Torch: 48RJ39 series (includes MT 210A cutting torch)
- - Includes: 1-3/8 in barrel, heat shield, and rigging
- - Rail Length: 12 ft
- - Maximum Operating Temperature: 300°F
- - Control Type: Hand-adjustment thumb screws
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.40
- Package Width: 12.00
- Package Height: 10.20
- Package Weight: 49.55
