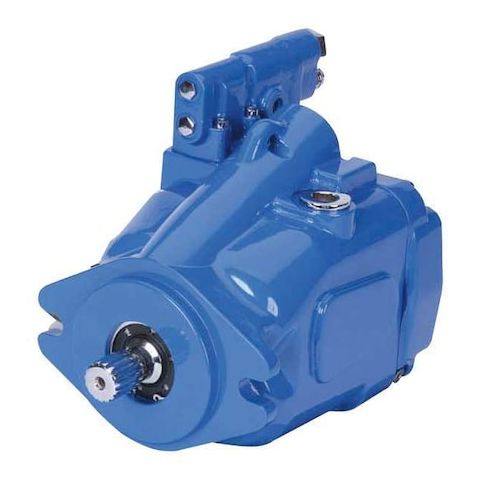

OpenCircuitPistonPmp, CI, 42gpm, 2"InletDia MPN:421AK01107B
OpenCircuitPistonPmp, CI, 42gpm, 2"InletDia
The Vickers Piston Pump is a high-performance open circuit pump designed for demanding applications. With a flow rate of 42 gpm and a displacement of 3.8 cu in/rev, it delivers efficient and reliable performance in a range of industries. Suitable for use in hydraulic systems, it can withstand continuous pressures of up to 4,641 psi and operates at motor speeds of up to 3,600 RPM. Its compact design and durable construction make it an ideal choice for applications such as manufacturing, oil and gas, and construction, where precision and power are essential.
Top product features:
- Open Circuit design allows for flexible pump operation and integration with various systems
- Maximum flow rate of 42 gpm enables efficient fluid transfer and high productivity
- Continuous pressure of up to 4,641 psi accommodates demanding applications and high-pressure requirements
Top product applications:
- Pumping hydraulic fluids in industrial machinery
- Pumping high-pressure fluids in oil and gas applications
- Pumping chemicals and other liquids in manufacturing processes
Open Circuit Piston Pump, Flow Rate - Maximum 42 gpm, Motor Speed - Minimum 600 RPM, Displacement per Revolution 3.8 cu in/rev, Discharge Connection Size 1 in, Discharge Connection Type SAE Code 61 Flange, Media Intake Connection Size 2 in, Media Intake Connection Type SAE Code 61 Flange, Continuous Pressure - Maximum 4,641 psi, Horsepower - Maximum 101 3/10 hp, Shaft Type Spline, Number of Shaft Teeth 15, Rotation CW, Mounting Type 2 Bolt B, Motor Speed - Maximum 3,600 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 82 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 12.20
- Package Height: 15.90
- Package Weight: 60.20
Product info last updated on February 27, 2026 2:28am UTC
Category: Positive Displacement Pumps
