OpenCircuitPistonPmp, CI, 44gpm, 2"InletDia MPN:421AK01111B
OpenCircuitPistonPmp, CI, 44gpm, 2"InletDia

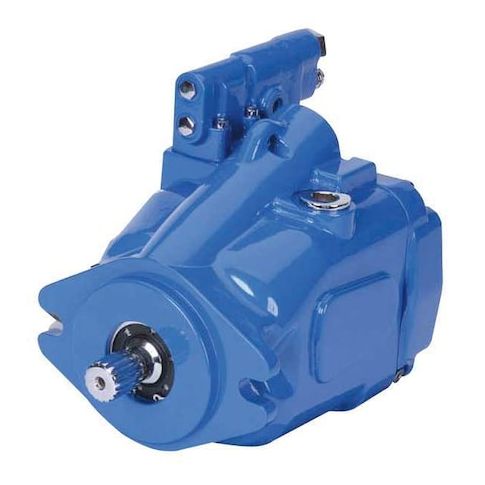

The Vickers Open Circuit Piston Pump is a high-performance solution for demanding applications. With a maximum flow rate of 44 gpm and a continuous pressure of 3,335 psi, this pump is ideal for use in heavy-duty industries such as oil and gas, manufacturing, and construction. Its compact design and keyed shaft make it easy to integrate into existing systems, while its maximum horsepower of 82.7 hp ensures reliable operation even in high-demand situations. Suitable for a wide range of applications, including hydraulic systems and fluid power transmission, this pump is a reliable choice for any industry that requires high-pressure fluid circulation.
Top product features:
- Open Circuit design allows for continuous operation without the need for a reservoir
- Displacement per Revolution of 4.8 cu in/rev enables efficient flow rates up to 44 gpm
- Shaft Type Keyed with Rotation CCW provides secure and precise motor connection
Top product applications:
- Industrial Hydraulic Systems
- Construction Equipment Hydraulic Systems
- Manufacturing Process Hydraulic Systems
Open Circuit Piston Pump, Flow Rate - Maximum 44 gpm, Motor Speed - Minimum 600 RPM, Displacement per Revolution 4.8 cu in/rev, Discharge Connection Size 1 in, Discharge Connection Type SAE Code 61 Flange, Media Intake Connection Size 2 in, Media Intake Connection Type SAE Code 61 Flange, Continuous Pressure - Maximum 3,335 psi, Horsepower - Maximum 82 7/10 hp, Shaft Type Keyed, Rotation CCW, Mounting Type 2/4 Bolt C, Motor Speed - Maximum 3,600 RPM, Case Pressure - Maximum 5 psi
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 82 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 12.50
- Package Height: 16.20
- Package Weight: 58.00
Product info last updated on February 22, 2026 7:10pm UTC
Category: Positive Displacement Pumps
