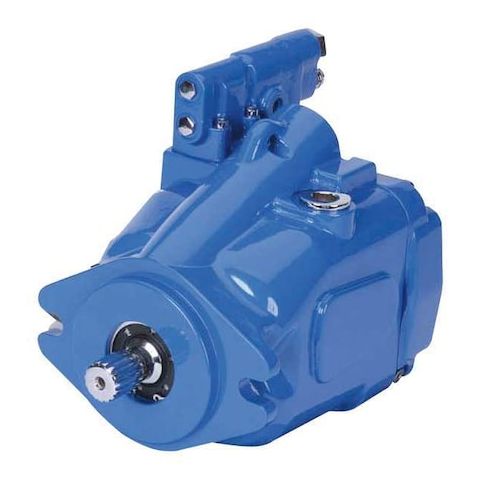

OpenCircuitPistonPmp, CI, 34gpm, 2"InletDia MPN:421AK01106B
OpenCircuitPistonPmp, CI, 34gpm, 2"InletDia
The Vickers Open Circuit Piston Pump is a high-performance solution for demanding applications. With a maximum flow rate of 34 gpm and a maximum pressure of 4,060 psi, this pump is ideal for heavy-duty use in industries such as oil and gas, construction, and manufacturing. Its compact design and spline shaft make it easy to integrate into existing systems, while its high horsepower rating of 81 1/2 hp ensures efficient operation. Suitable for use in a variety of applications, including high-pressure hydraulic systems and material handling equipment, this pump provides reliable performance and long-lasting durability.
Top product features:
- Open Circuit design allows for continuous operation without the need for a suction valve, reducing downtime and increasing overall efficiency.
- The pump has a maximum flow rate of 34 gpm, making it suitable for high-demand applications.
- The pump's maximum pressure rating of 4,060 psi enables it to handle high-pressure applications, such as industrial hydraulic systems.
Top product applications:
- Oil Hydraulic Power Unit
- Chemical Processing Equipment
- Industrial Machinery
Open Circuit Piston Pump, Flow Rate - Maximum 34 gpm, Motor Speed - Minimum 600 RPM, Displacement per Revolution 3 cu in/rev, Discharge Connection Size 1 in, Discharge Connection Type SAE Code 61 Flange, Media Intake Connection Size 2 in, Media Intake Connection Type SAE Code 61 Flange, Continuous Pressure - Maximum 4,060 psi, Horsepower - Maximum 81 1/2 hp, Shaft Type Spline, Number of Shaft Teeth 15, Rotation CCW, Mounting Type 2 Bolt B, Motor Speed - Maximum 3,600 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 82 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 13.10
- Package Height: 16.10
- Package Weight: 58.95
Product info last updated on February 3, 2026 9:03am UTC
Category: Positive Displacement Pumps
