Pneumatic Vibrator, 650 lb, 8900 vpm, 80psi MPN:V-320
Pneumatic Vibrator, 650 lb, 8900 vpm, 80psi

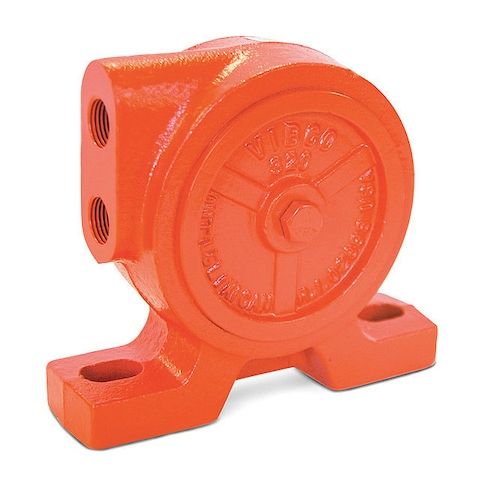

The Vibco Pneumatic Vibrator is a powerful and reliable solution for various industrial applications, including material handling, bin management, and conveyor systems. With a maximum force of 650 lbf and a vibration speed of 10,000 vpm, it efficiently moves and controls material flow. Its cast iron housing and NPT connections ensure durability and easy integration. This unit is ideal for use in warehouses, manufacturing facilities, and construction sites, providing a continuous duty cycle and a maximum bin weight capacity of 6,500 lb. Its compact size and moderate sound level make it suitable for a variety of applications.
Top product features:
- Cast Iron housing provides durability and resistance to wear and tear.
- Maximum vibration speed of 10,000 vpm ensures efficient material movement and flow.
- Ball-type pneumatic vibrator design allows for consistent and controlled force application.
Top product applications:
- Batching and Mixing of Powders
- Densifying and consolidating materials in bins and hoppers
- Material separation and densification in processing plants
Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 3/8 in, Outlet Connection Type NPT, Air Flow Rate 12 cfm @ 40 psi, 14 cfm @ 60 psi, 17 cfm @ 80 psi, Maximum Force 650 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 10,000 vpm, Maximum Bin Weight Capacity 6,500 lb, Overall Height 4.88 in, Overall Length 2.76 in, Overall Width 5.59 in, Sound Level 78 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball, Force @ PSI 650 lbf @ 80 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 5.30
- Package Height: 4.10
- Package Weight: 4.65
Product info last updated on February 10, 2026 12:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
