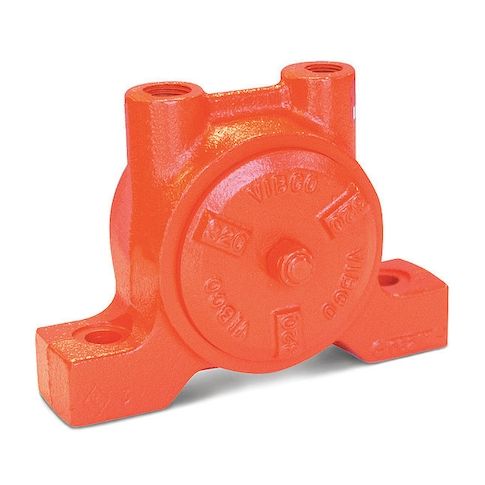

Pneumatic Vibrator, 600 lb, 5500 vpm, 80psi MPN:BVS-320
Pneumatic Vibrator, 600 lb, 5500 vpm, 80psi
The Vibco Pneumatic Vibrator is a powerful and efficient solution for material flow and conveying applications. With a maximum force of 600 lbf and a vibration speed of 6,800 vpm, it effectively moves heavy loads, including up to 6,000 lb bins, while operating at a low sound level of 70 dBA. Suitable for use in a variety of industries, including mining, aggregate, and construction, this turbine-style vibrator is ideal for applications such as bin unloading, conveyor belt maintenance, and material processing. Its continuous duty cycle and fast shipping make it an attractive option for companies looking to optimize their material handling processes.
Top product features:
- Turbine-type pneumatic vibrator provides high vibration speed of up to 6,800 vpm.
- Generates a maximum force of 600 lbf to efficiently move and settle materials.
- Operates at a maximum pressure of 80 psi to ensure consistent performance.
Top product applications:
- Powder handling and transfer
- Bulk material unloading and loading
- Material processing and separation
Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 1/2 in, Outlet Connection Type NPT, Air Flow Rate 10 cfm @ 80 psi, 9 cfm @ 60 psi, Maximum Force 600 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 6,800 vpm, Maximum Bin Weight Capacity 6,000 lb, Overall Height 4.88 in, Overall Length 6.73 in, Overall Width 4.02 in, Sound Level 70 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 395 lbf @ 60 psi, 600 lbf @ 80 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.20
- Package Height: 4.10
- Package Weight: 9.00
Product info last updated on February 7, 2026 9:57am UTC
Category: Bearings, V-belts and Power Transmission Equipment
