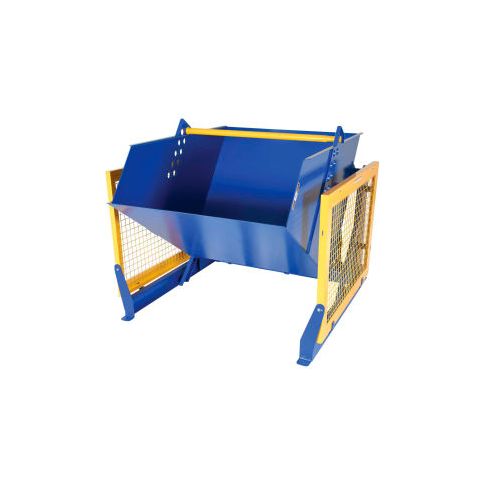

Electric Powered Hydraulic Lift Box & Container Dumper HBD-2-60 HBD-2-60

This item is NOT returnable.

This item is NOT cancellable.

Designed for controlled dumping of material from boxes crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24" 30" and 36" high containers (contact factory for other hold-down bar heights). Maximum rotation is 135° and dump angle is 45°. The full load amperage is 7.8 amps. Hand control features two buttons up and down. This control enables the unit to stop automatically when either button is released. Chute reach is 10" when fully rotated. Internal 2hp power unit and hand held control standard. Protective mesh side screens included. Heavy-duty welded steel construction. Painted blue finish. 460 3-phase. Note product has a tolerance of +/- ".
