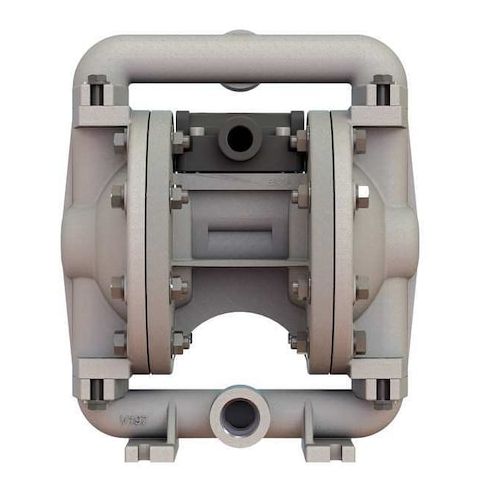

Air Operated Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 12 gpm GPM 220 Degrees F MPN:E5SP5F559C-FP
Air Operated Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 12 gpm GPM 220 Degrees F
The Air Operated Double Diaphragm Pump from VERSAMATIC is a reliable and efficient solution for various industrial applications. This stainless steel pump operates on compressed air, making it ideal for use in harsh environments and minimizing the risk of contamination. With a flow rate of 12 gpm and a maximum head of 231 ft, it can handle demanding tasks such as transferring chemicals, wastewater, and other viscous liquids. Its PTFE components ensure durability and resistance to corrosion, making it perfect for use in food processing, pharmaceuticals, and other industries where cleanliness is crucial.
Top product features:
- Air Operated Double Diaphragm Pump provides a flow rate of up to 12 gpm.
- The pump is designed for high-temperature applications, capable of withstanding temperatures up to 220 Degrees F.
- The pump can achieve a maximum head of 231 ft, allowing for efficient transfer of media over long distances.
Top product applications:
- Chemical processing: The pump's PTFE materials and air-operated design make it suitable for handling corrosive chemicals in a variety of applications.
- Wastewater treatment: The pump's ability to handle high heads and flows, combined with its chemical resistance, make it a good fit for wastewater treatment plants.
- Pharmaceutical processing: The pump's sanitary design and PTFE materials make it suitable for use in pharmaceutical processing applications where high purity and cleanliness are required.
Air Operated Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 12 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 10.90
- Package Height: 8.60
- Package Weight: 16.90
Product info last updated on February 27, 2026 5:46pm UTC
Category: Positive Displacement Pumps
