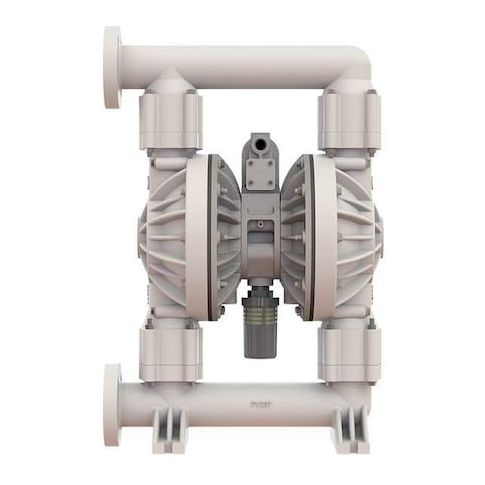

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene MPN:E2PA6D669C
The Versamatic Double Diaphragm Pump is a reliable and efficient solution for a wide range of applications, from industrial processes to wastewater treatment. This air-operated pump features a polypropylene housing and Santoprene diaphragms, allowing it to handle fluids and suspended solids with ease. With a maximum flow rate of 177 gpm and operating pressures up to 100 psi, it's perfect for applications where high flow rates and pressures are required. Its self-priming capability and ability to handle solids up to 1/4 inch in diameter make it ideal for use in chemical plants, water treatment facilities, and manufacturing processes.
Top product features:
- Self-priming up to 32 ft wet lift and 16 ft dry lift.
- Maximum flow rate specified up to 177 gpm, with published flow rates across operating pressures up to 100 psi.
- Supports fluids with solid particles up to 1/4 in diameter.
Top product applications:
- Chemical Transfer
- Water Treatment
- Oil and Gas Industry Applications
This item is an air-operated double diaphragm pump with a polypropylene housing and flanged inlet and discharge connections. It uses a bolted pump assembly with Santoprene diaphragms and ball-style valves to move fluids through a pneumatic operating system. The pump is self-priming within specified lift limits and is configured to handle fluids and suspended solids within defined pressure, temperature, and flow ranges.
Key Features:
- Pump Type: Air-operated double diaphragm pump.
- Flow Capacity: Maximum flow rate specified up to 177 gpm, with published flow rates across operating pressures up to 100 psi.
- Operating Pressure: Rated for air intake and operating pressures up to 100 psi.
- Priming Capability: Self-priming up to 32 ft wet lift and 16 ft dry lift.
- Construction Materials: Polypropylene housing with Santoprene diaphragms and Santoprene ball valves.
- Connections: 2 in flanged inlet and discharge with a 1/2 in FNPT air intake connection.
- Media Handling: Supports fluids with solid particles up to 1/4 in diameter.
- Temperature Rating: Maximum media temperature specified at 175°F.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 13.10
- Package Height: 32.00
- Package Weight: 68.00
