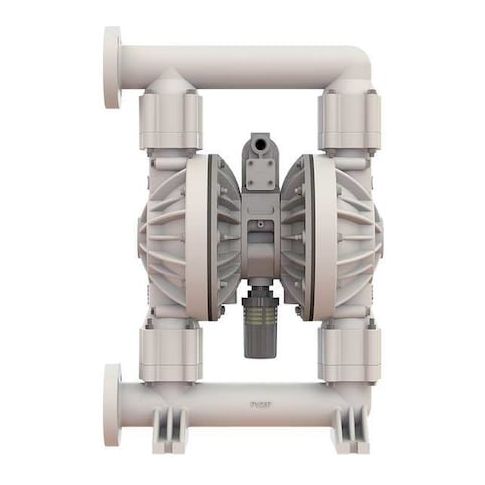

E2 Air-Operated Double Diaphragm Pump, PP/PTFE, 177 GPM, 220°F MPN:E2PA5F5T9C

• The VERSAMATIC E2PA5F5T9C is an air-operated, double-diaphragm pump with a polypropylene housing and PTFE wetted components. It is rated for continuous duty cycle, self-priming operation and provides a maximum flow rate: 177 gpm with media temperature limit (max): 220°F and air intake/operating pressure limit (max): 100 psi.

  Key Features:

  • Pump type: Double diaphragm, air operated (Series E, Series Family E2)
  • Materials: Housing/wetted housing — polypropylene
  • diaphragm, valve, and check seat — PTFE
  • valve type — PTFE ball
  • Flow performance: Maximum 177 gpm
  • Head and solids: Maximum feet of head 260 ft
  • maximum solid diameter 1/4 in
  • Connections and locations: Media intake and discharge 2 in flanged connections
  • intake location — bottom
  • discharge location — top
  • manifold connection — single port
  • inlet/outlet — 2 in
  • Priming and duty: self-priming capability (dry lift up to 16 ft
  • wet lift up to 32 ft)
  • continuous duty cycle (rated)
  • Air requirements: Air intake connection 1/2 in FNPT
  • air intake connection type FNPT
  • maximum air consumption 120 scfm
  • maximum air intake pressure 100 psi
  • Physical and assembly: Overall dimensions — height 30.3 in, length 12.6 in, width 19-53/64 in
  • pump assembly type — bolt
  • Compatibility and limits: Media temperature maximum 220 Degrees F
  • listed chemical compatibility includes Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid (10%, 20%, 30%, 40%, 100%), Kerosene, Oil-Based Paint, Oils, Phosphoric Acid (40%, 50%, 60%, 70%, 80%, 90%, 100%), Potassium Hydroxide 50%, Sodium Hydroxide (10%, 20%, 50%, 80%), Sodium Hypochlorite (5%, 10%, 20%), Sulfuric Acid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%), Water
