Taperlock Thread Plug Gage, No 10-32 Size MPN:301121010
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2763719
Taperlock Thread Plug Gage, No 10-32 Size

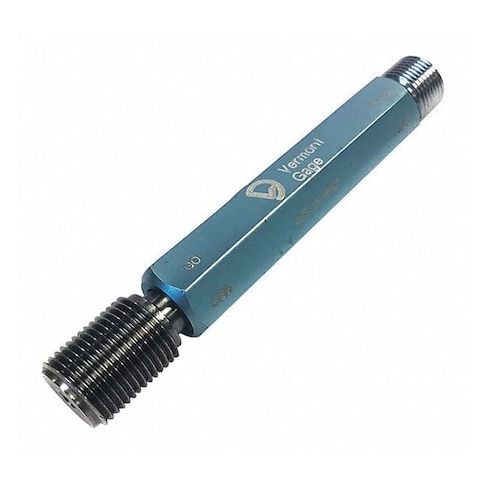

This Taperlock Thread Plug Gage from Vermont Gage is a precision tool for measuring and verifying thread sizes. Ideal for quality control and inspection, it ensures accurate thread dimensions on components and assemblies. The gage is designed for use on UNF threads, with a tolerance class of X and a pitch diameter of 0.1697 inches. Its compact size and chrome-plated finish make it durable and easy to use. Suitable for a range of industries, including aerospace, automotive, and manufacturing, this gage helps ensure thread consistency and reduces the risk of defects and rework.
Top product features:
- Taperlock design for secure thread engagement
- Chrome plated finish for durability and resistance to corrosion
- Tool steel construction with hardness of RC 70-72 for long-lasting performance
Top product applications:
- Inspecting and verifying the thread size of #10-32 UNF threads in production or quality control environments
- Measuring and checking the thread size of #10-32 UNF threads in manufacturing or repair shops
- Verifying the thread size of #10-32 UNF threads in the aerospace or defense industries where precision and accuracy are critical
Threaded Plug Gauge, Dimension Type Inch, Gauge Type Go (Plus), Handle Design Member Only, Included Handle Not Applicable, Thread Class 2A, 3B, Thread Size #10-32, Thread Type UNF, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 13/32 in, Gauge Material Tool Steel, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability, Long Form Calibration Certificate No, Pitch Diameter - Go Member 0.1697 in, Standards ASME B1.2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.30
- Package Height: 0.30
- Package Weight: 0.05
Product info last updated on January 22, 2026 5:17pm UTC
Category: Measuring and Marking Tools
