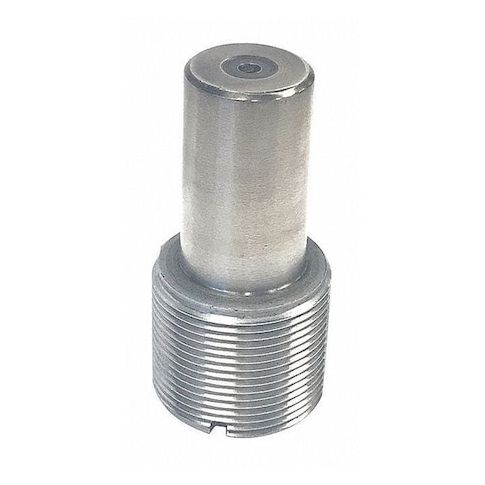

Taperlock Thread Plug Gage, No 10-24 Size MPN:301120020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2763667
Taperlock Thread Plug Gage, No 10-24 Size
This Taperlock Thread Plug Gage is a precision tool used to verify the thread quality of #10-24 UNC threads. By ensuring the thread meets the required specifications, it helps prevent product failure, reduces manufacturing costs, and ensures compliance with ASME B1.2 standards. This gage is ideal for use in industries such as aerospace, automotive, and medical device manufacturing, where thread consistency is critical. Its chrome-plated finish and tool steel construction ensure durability and accuracy, while its NIST-traceable certification provides confidence in its accuracy. With a lead time of 7 days, it's perfect for applications requiring precise thread inspection.
Top product features:
- Chromed plated for corrosion resistance
- Tool steel construction for durability and hardness
- NIST-traceable certification for accuracy and reliability
Top product applications:
- Quality control inspection of threaded components in the aerospace industry
- Thread gauge calibration in a manufacturing facility
- Verification of threaded connections in the automotive sector
Threaded Plug Gauge, Dimension Type Inch, Gauge Type No-Go (Minus), Handle Design Member Only, Included Handle Not Applicable, Thread Class 2B, Thread Size #10-24, Thread Type UNC, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - No-Go Member 9/32 in, Gauge Material Tool Steel, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability, Long Form Calibration Certificate No, Pitch Diameter - No-Go Member 0.1672 in, Standards ASME B1.2
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.50
Product info last updated on March 4, 2026 11:34am UTC
Category: Measuring and Marking Tools
