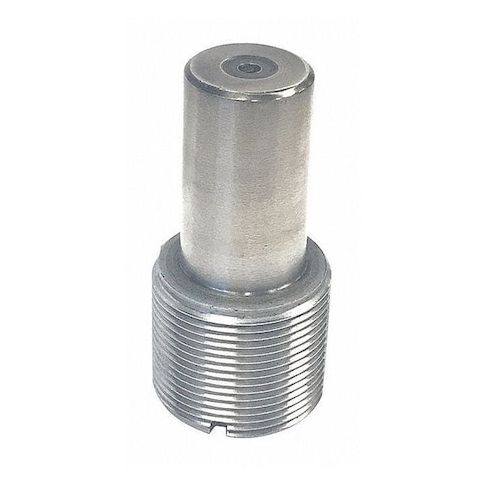

Taperlock Thread Plug Gage, 1/4"-32 Size MPN:301128020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2726302
Taperlock Thread Plug Gage, 1/4"-32 Size
Ensure precise thread measurements with the Taperlock Thread Plug Gage from Vermont Gage. This 1/4in-32 size gauge is designed for dimensional inspection, verifying the accuracy of threaded components in aerospace, automotive, and industrial applications. The no-go (minus) type gauge prevents over-tightening, ensuring safe and reliable connections. Made from tool steel with a hardness of RC 70-72, this gauge is durable and long-lasting. With a certificate of accuracy featuring NIST traceability, you can trust the results. Ideal for quality control and inspection, this gauge is a valuable addition to any facility where thread accuracy is crucial.
Top product features:
- Chrome plated gauge finish for corrosion resistance
- Tool steel gauge material with hardness of RC 70-72 for durability
- No-Go (Minus) gauge type for accurate thread measurement and inspection
Top product applications:
- Measuring and verifying the thread size of 1/4in-32 UNEF threads in aerospace and defense applications
- Inspecting and testing the thread quality of 1/4in-32 UNEF threads in the automotive industry
- Verifying the thread conformity of 1/4in-32 UNEF threads in the medical device manufacturing process
Threaded Plug Gauge, Dimension Type Inch, Gauge Type No-Go (Minus), Handle Design Member Only, Included Handle Not Applicable, Thread Class 2B, Thread Size 1/4 In.-32, Thread Type UNEF, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - No-Go Member 5/16 in, Gauge Material Tool Steel, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability, Long Form Calibration Certificate No, Pitch Diameter - No-Go Member 0.2339 in, Standards ASME B1.2
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.50
Product info last updated on February 14, 2026 4:08pm UTC
Category: Measuring and Marking Tools
