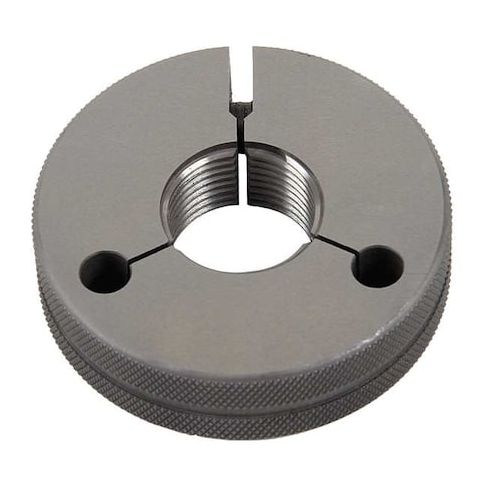

Adj. No Go Ring Gage, 3/4-20 UNEF 2A MPN:361154030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1679921
Adj. No Go Ring Gage, 3/4-20 UNEF 2A
Ensure precise thread measurements with the Vermont Gage Adj. No Go Ring Gage. This long-form calibration certificate includes a No-Go (minus) member with a pitch diameter of 0.7118 inches, making it ideal for verifying thread consistency in various applications. The tool steel construction provides durability, while the adjustable design allows for easy calibration. Suitable for use in industries requiring high accuracy, such as aerospace, automotive, and oil and gas, this gage is compatible with 3/4-20 UNEF threads. Its compact size and lightweight design make it easy to handle and store, reducing the risk of measurement errors and increasing productivity.
Top product features:
- Threaded Ring Gauge design allows for adjustable fit
- Provides a No-Go measurement, indicating the minimum thread size
- Includes a Certificate of Accuracy with NIST Traceability for verification of measurement accuracy
Top product applications:
- Thread inspection in manufacturing
- Quality control in aerospace industry
- Checking thread accuracy in mechanical engineering projects
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.7118 in, Pitch Diameter - No-Go Member 0.7118 in, Thread Class 2A, Thread Length 9/16 in, Thread Size 3/4 In.-20, Thread Type UNEF, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.20
- Package Height: 1.70
- Package Weight: 0.58
Product info last updated on April 3, 2026 2:52pm UTC
Category: Measuring and Marking Tools
