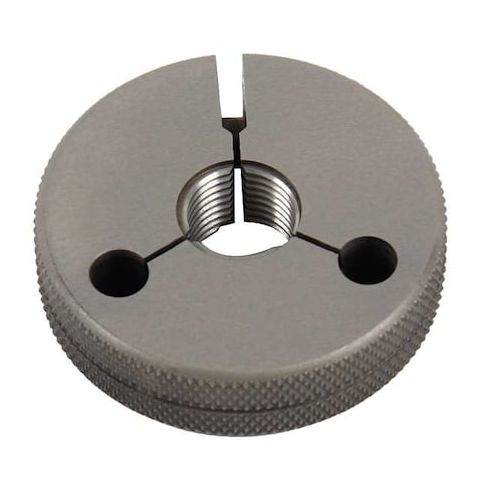

Adj. No Go Ring Gage, M20.0-2.50 2A MPN:362146520
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0582285
Adj. No Go Ring Gage, M20.0-2.50 2A
Ensure precise thread measurements with the Adj. No Go Ring Gage, M20.0-2.50 2A from Vermont Gage. This threaded ring gauge is designed for use in metric applications, providing an accurate no-go measurement for M20 x 2.50 threads. With a pitch diameter of 18.164 mm and a no-go member of 18.16 mm, this gauge ensures that threads meet the required specifications. Ideal for use in industries such as aerospace, automotive, and manufacturing, this gauge offers a range of benefits, including improved quality control, reduced errors, and increased productivity. It is also backed by a certificate of accuracy with NIST traceability.
Top product features:
- Threaded ring gauge with adjustable design
- Provides a no-go measurement, indicating the minimum pitch diameter of 18.164 mm
- Includes a certification certificate with NIST traceability for accuracy standards
Top product applications:
- Thread inspection for quality control
- Precision measurement in manufacturing
- Checking thread consistency in production environments
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Metric, Gauge Type No-Go (Minus), Pitch Diameter 18.164 mm, Pitch Diameter - No-Go Member 18.16 mm, Thread Class 6G, Thread Length 14.3 mm, Thread Size M20 x 2.50, Thread Type Metric, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.16M, Tolerance Class X
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.20
- Package Height: 1.70
- Package Weight: 0.55
Product info last updated on April 5, 2026 12:45am UTC
Category: Measuring and Marking Tools
