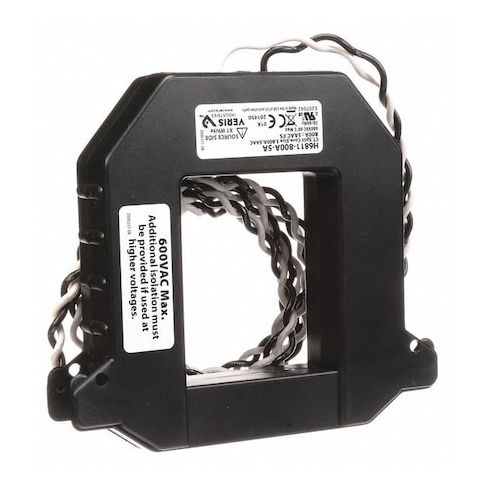

Split Core Current Transformer, 0 to 800A, 0 to 5A, 2 ft 16 AWG Leads MPN:PDS-CTSC-082
Split Core Current Transformer, 0 to 800A, 0 to 5A, 2 ft 16 AWG Leads
This Split Core Current Transformer is designed for measuring electrical current in a wide range of applications. With a primary range of 0 to 800A and a secondary range of 0 to 5A, it provides accurate and reliable measurements. Its compact design and 2 ft 16 AWG leads make it easy to install and connect. Ideal for use in industrial, commercial, and residential settings, this transformer is perfect for monitoring energy usage, detecting power outages, and troubleshooting electrical systems. Its versatility and accuracy make it a valuable tool for electricians, engineers, and facility managers.
Top product features:
- Split Core design allows for easy installation without disrupting existing wiring
- Measures primary currents up to 800A with a secondary range of 0 to 5A
- Rectangular window design provides a clear view of the measurement area
Top product applications:
- Industrial Automation: The Split Core Current Transformer can be used to measure and monitor electrical currents in industrial control systems, such as motor control panels and power distribution units.
- Electrical Panel Building: This product can be used in electrical panel building to provide a safe and convenient way to measure electrical currents, making it easier to design and build electrical panels.
- Research and Development: The Split Core Current Transformer can be used in research and development applications, such as testing and measuring electrical currents in prototype systems, to help engineers and researchers design and optimize electrical systems.
Split Core Current Transformer, Primary Range 0 to 800A, Secondary Range 0 to 5A, Hole Height 2.9 in, Hole Width 2.5 in, Electrical Connection - Current Transformer 2 ft 16 AWG Leads, Window Rectangular, Overall Height 6.5 in, Overall Width 5.91 in, Overall Depth 1.13 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.50
- Package Height: 1.80
- Package Weight: 1.30
Product info last updated on February 17, 2026 4:42pm UTC
Category: Power Quality and Distribution
