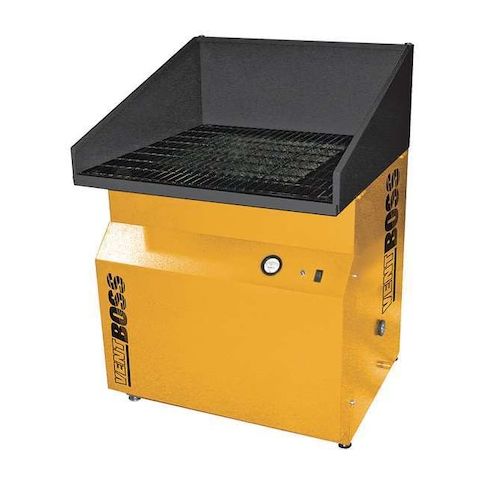

Downdraft Fume/Smoke Collector Table, 1, 280 CFM, HEPA MERV11, 3/4 HP MPN:S210
The VENTBOSS by Robovent S210 is a powerful downdraft table fume/smoke collector designed for use with grinding and manual welding applications. Its 1,280 CFM airflow rating captures even the smallest particles, providing a safe and healthy working environment. The unit features a HEPA MERV 11 filter, nanofiber media, and a compressed air pulse cleaning system for optimal performance. With a 300 lb rated load capacity and 420 lb rated weight capacity, it can handle heavy-duty use. Suitable for a variety of industries, including metal fabrication, automotive, and aerospace, this table is a valuable investment for any shop or facility looking to improve air quality and productivity.
Top product features:
- Air flow: 1,280 cfm (maximum)
- Motor: 0.75 hp (3/4 hp) with single-phase 110V AC, 60 Hz power
- HEPA filtration media with MERV 11 filter efficiency: 10%
Top product applications:
- Grinding applications
- Manual welding applications
- Metal fabrication
The VENTBOSS by Robovent S210 is a downdraft table fume/smoke collector with an airflow rating: 1,280 cfm (maximum). It is for use with grinding and manual welding applications. It has a motor rating: 0.75 hp (3/4 hp) and runs on single-phase 110V AC, 60 Hz power (Current: 16 A
- Input: 20 A). The unit’s overall dimensions are 37 in W x 29 in D x 52 in H and it features a 36 x 36 in steel work surface with a steel bar grate. Rated load capacity is 300 lb, and rated weight capacity is 420 lb.
Key Features:
- Air flow: 1,280 cfm (Airflow rating: 1,280 cfm (maximum))
- Motor: 0.75 hp (3/4 hp)
- Electrical: 110V AC, 60 Hz, Single phase
- Current 16 A
- Input (Amps) 20 A
- Filtration: HEPA filtration media included (MERV 11
- filter efficiency: 10%)
- Filter media: nanofiber
- Compatible filter part number: PL-22D12-A15-C
- Includes minihelic filter gauge
- Compressed air pulse cleaning system with onboard tank
- High performance blower
- Sound level rating: 67–70 dBA
- Construction: Housing and table surface material — steel
- Table/work surface: 36 x 36 in steel bar grate
- Work table type: Down Draft Table
- Series: 200, Booth
- Dimensions & capacities: Overall Width 37 in
- Overall Depth 29 in
- Overall Height 52 in
- Depth 37 in
- Height 37 in
- Width 37 in
- Rated load capacity: 300 lb
- Rated weight capacity: 420 lb
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 40.00
- Package Width: 40.00
- Package Height: 46.00
- Package Weight: 400.00
